APPLICATION

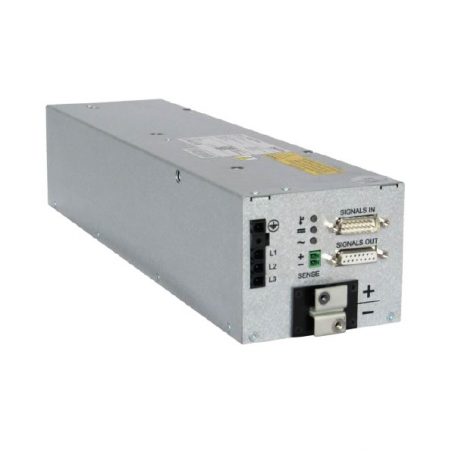

The TCP3500 Series is a universal 3-phase AC-DC converter with adjustable DC output and universal 3-phase AC input. Conduction
cooling (No Fans) makes this power supply series suitable for a wide variety of industrial applications that can utilise conduction or liquid cooling, negating the use of fans.
Emphasis is given on reliability and long life. Parallel operation is possible up to 16 units (50.4 kW). Passive or active current share
system can be selected. The PSU includes DSP which enables monitoring of electrical parameters (including input voltage of all 3 phases) and controlling the PSU from the system controller.
An RS485 bus is used for command, monitoring and diagnostic information that can be supplied to a system controller.
feature list
World-Wide 3-phase Input voltage range (nom. 115 - 277 V / 200 - 480 V)
Power factor > 0.94
High power density 16 W/in3
94% typical efficiency
Parallel operation up to 16 Units (50.4 kW)
Cold-plate cooling system
0 to 50°C of Cold-plate surface,
0 to 70°C of ambient air temperature
Possibility to install 4 units in 2U 19” Rack
Advanced performance for fast dynamic and pulsed loads up to 100 kHz (Optional)
RS485 interfaces
Wide adjustable output voltage range
Fast output voltage set response (5 ms)
Active current sharing
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| TCP3500-1024G | 180-528Vac 3 phase | 28V dc 10 to 32V dc adjustable | 3500W |
| TCP3500-H048G | 180-528Vac 3 phase | 48V dc 10 - 50V dc adjustable | 3500W PSU model with pulse load operation capability 0 – 100 kHz, 0 – 100% Duty, 0 A/Iout_max. |
| TCP3500-1048G | 180-528Vac 3 phase | 48V dc 10 - 50V dc adjustable | 3500W |
| TCP3500-H090G | 180-528Vac 3 phase | 90V dc 30 - 100V dc | 4000W PSU model with pulse load operation capability 0 – 100 kHz, 0 – 100% Duty, 0 A/Iout_max. |
