APPLICATION
Advanced Energy’s SL Power SLE24 series of plug-in wall-mount AC-DC power adapters feature both medical and ITE safety approvals. It meets Department of Energy Level VI and European Code of Conduct V5 Tier 2 Directive efficiency standards.
feature list
Medical and ITE safeties

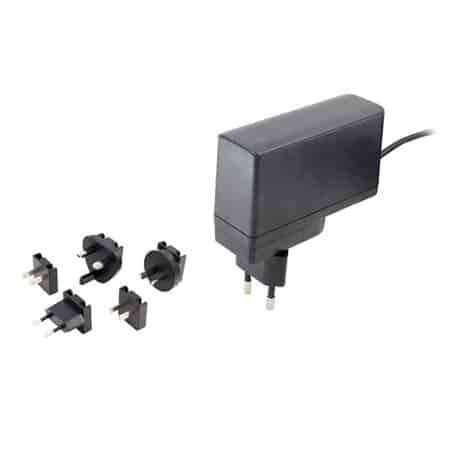

Available in interchangeable AC plugs or fixed blade versions
2 x MOPP input to output isolation
Suitable for medical equipment up to class BF
Low leakage current
≤ 10 μA (8.1 to 14 V)
≤ 50 μA (6.1 to 8 V & 14.1 to 24 V)
Overvoltage, overcurrent and short circuit protection
EU CoC V5 Tier 2 compliant
DoE Efficiency level VI
≤ 0.075 W standby power
Up to 5000 m operating altitude
SAFETY
CB Medical: IEC 60601-1 ANSI/AAMI ES 60601-1 ITE: IEC 62368-1, UL 62368-1
UL Medical: CAN/CSA C22.2. No. 60601-1 ITE: CAN/CSA C22.2 No. 62368-1
TUV Medical: EN 60601-1 ITE: EN 62368-1 RCM ITE: AS/NZS 62368-1
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| SLE24S0903B01 | 90-264 VAC | 9V | 21W |
| SLE24S1203B01 | 90-264 VAC | 12V | 24W |
| SLE24S2403B01 | 90-264 VAC | 24V | 24W |
| SLE24S4803B01 | 90-264 VAC | 48V | 24W |
| "B" in the model number (SLE24S0903B01) indicates interchangeable blade model. Blades can be ordered separately from Relec. | |||
