APPLICATION

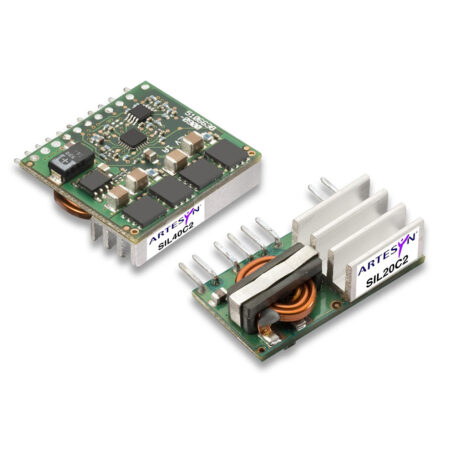

Introducing the SIL/SMT Series, a comprehensive range of high-density, non-isolated DC-DC converters from Advanced Energy’s Artesyn line, designed for cost- and space-sensitive applications. These converters offer robust and efficient power solutions to meet a wide variety of silicon power needs.
The SIL/SMT Series supports input voltage ranges from as low as 3 VDC up to 14 VDC, with outputs adjustable from 0.59 VDC to 5.1 VDC. With models capable of delivering up to 60A and power ratings up to 240W, this series ensures optimal performance for demanding applications. Typical efficiencies reach up to 95%, ensuring minimal energy loss.
Key features across the SIL/SMT Series include remote On/Off, remote sense, remote ‘power good’ indication, and comprehensive protection mechanisms against short-circuit and over-temperature conditions. The series offers a variety of mounting options, including through-hole horizontal, through-hole vertical, and surface mount configurations, to fit diverse design requirements.
The SIL/SMT Series is ideal for applications requiring reliable, high-current power conversion in a compact form factor, offering flexible, efficient, and protected power solutions for a broad range of electronic applications.
feature list
Current ratings: 5 A, 10 A, 15 A, 20 A, 30 A, 40 A
Input voltage range: 3.0 - 14 Vdc
Output voltage range: 0.59 - 5.1 V
Ultra-high efficiency up to 96% @ 5 Vin and 3.3 Vout
Extremely low internal power dissipation
Minimal thermal design concerns
Industry standard surface-mount footprint
Available RoHS compliant
Two-year warranty
Cost optimised design
Excellent transient response
Output enable
Output voltage adjustability
Path for future upgrades
Supports silicon voltage migration
Current sink capability
Power good output signal
Remote ON/OFF (active high)
0 A minimum load
Input under-voltage lockout
Operating ambient temperature up to +70 °C with suitable derating and forced air cooling
Phase shedding for power saving during light loads
Two bit VID adjustable output voltage
Supports PMBus
| MODEL NUMBER | INPUT RANGE | OUTPUT | Current |
|---|---|---|---|
| SIL05E-05W3V3-VJ | 3 - 5.5 Vdc | 0.75 - 3.63 Vdc | 5A |
| SIL25C-12SNEG-VJ | 10.8 - 13.8 Vdc | -5.05 Vdc | 25A |
| SIL60C2-00SADJ-VDJ | 4.5 - 13.8 Vdc | 0.8 - 4 Vdc | 60A |
| SIL20C2-00SADJ-HJ | 4.5 - 13.8 Vdc | 0.59 - 5.1 Vdc | 20A |
| SIL20C2-00SADJ-VJ | 4.5 - 13.8 Vdc | 0.59 - 5.1 Vdc | 20A |
| SIL40C2-00SADJ-VJ | 4.5 - 13.8 Vdc | 0.6 - 5 Vdc | 40A |
| SIL40C2-00SADJ-HJ | 4.5 - 13.8 Vdc | 0.6 - 5 Vdc | 40A |
| SMT20C2-00SADJJ | 4.5 - 13.8 Vdc | 0.59 - 5.1 Vdc | 20A |
| SMT40C2-00SADJJ | 4.5 - 13.8 Vdc | 0.6 - 5 Vdc | 40A |
| SMT05E-05W3V3J | 3 - 13.2 Vdc | 0.75 - 3.63 Vdc | 5A |
| SMT30C-12SADJJ | 10.8 - 13.8 Vdc | 0.9 - 5 Vdc | 30A |
| SMT30E-12W3V3-J | 8 - 14 Vdc | 0.8 - 3.63 Vdc | 30A |
| SMT05E-12W3V3J | 10 - 14 Vdc | 0.8 - 3.63 Vdc | 5A |
| SMT10E-05W3V3-J | 3 - 13.2 Vdc | 0.8 - 3.63 Vdc | 10A |
| SMT10E-12W3V3-J | 10 - 14 Vdc | 0.8 - 3.63 Vdc | 10A |
| SMT15E-05W3V3J | 3 - 13.2 Vdc | 0.8 - 3.63 Vdc | 15A |
| SMT15E-12W3V3J | 10 - 14 Vdc | 0.8 - 3.63 Vdc | 15A |
Downloads
Click on the link below for an instant download.
-
SIL05E Series datasheet
-
SIL25C Series datasheet
-
SIL60C2 Series datasheet
-
SMT10E_12 Series datasheet
-
SMT10E Series datasheet
-
SMT05E Series datasheet
-
SMT05E_12 Series datasheet
-
SMT30E Series datasheet
-
SMT30C Series datasheet
-
SMT15E_12 Series datasheet
-
SMT15E Series datasheet
-
SIL/SMT20C2 Series datasheet
-
SIL/SMT40C2 Series datasheet
