APPLICATION

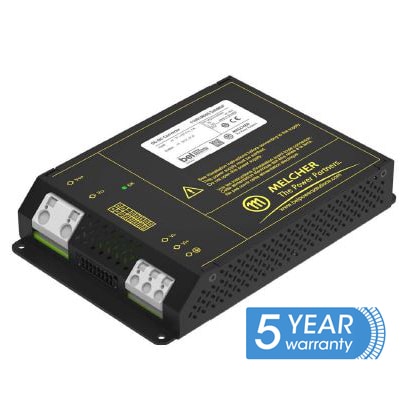

The Melcher RCM500 Series converters are reliable power supplies for railway and transportation systems.
They are optimised for 110Vdc railway batteries. The output delivers 500 or 1000 W at 24Vdc.
The converters have an enclosed housing designed for chassis mounting.
Many options are available, such as an output ORing FET for redundant operation, output voltage adjustment, interruption time of 10 ms (class ST2), output OK signals, and a shutdown input.
feature list
RoHS lead-free-solder product
Optimised for 110Vdc railway batteries
Output voltage: 24Vdc
Enclosed housing for chassis mounting
Extremely high efficiency and high power density
Low inrush current
3 connectors: Input, output, auxiliary (option)
Over temperature, over voltage, over current, and overload protection
Many options available
Compliant to EN 50155, EN 50121-3-2
Protected against fire and smoke according to EN 45545
MTBF: TBD
Operating temperature range:-40°C to +85°C
Warranty: 5 years
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| 72RCM500-24 | 43.2-100.8VDC | 24V | 500W |
| 110RCM500-24 | 66-154VDC | 24V | 500W |
