APPLICATION

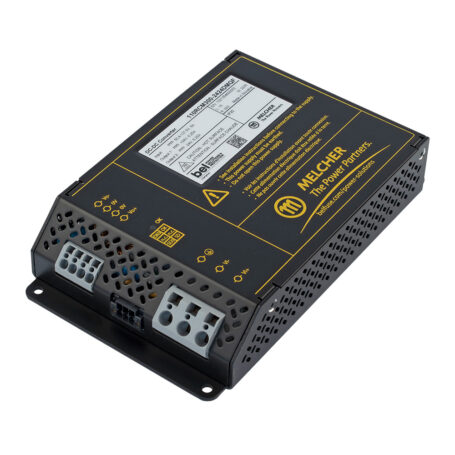

The RCM200/300 Dual Output Series DC-DC converters are reliable power solutions for railway and transportation applications, supporting all common railway voltages with two input voltage ranges. They deliver 200 W or 300 W at +15 V / -15 V or +24 V / -24 V and feature a robust, closed housing for chassis mounting with efficient cooling.
Designed for high performance, these converters include an output ORing FET for redundancy, a 10 ms interruption time (class S2), a shutdown input, and an output voltage monitor with relay control. With high efficiency, low inrush current, and comprehensive protections against overtemperature, overvoltage, overcurrent, and overload, they ensure safe and reliable operation.
Compliant with EN 50155, EN 50121-3-2, AREMA, EN 45545, and NFPA 130 standards, the RCM200/300 Series meets stringent railway safety and performance requirements. Certified under IEC/EN 62368-1, CSA 62368-1, and UL 62368-1, and backed by a five-year warranty, these converters are an ideal choice for railway and industrial power applications.
feature list
2 input voltage ranges covering all common railway batteries
Dual output +15 V / -15 V or +24 V / -24 V
Dimensions: 116 x 38 x 188.6 mm (4.57 x 1.5 x 4.43 in)
Safety-approved to IEC/EN 62368-1 and UL/CSA 62368-1
Compliant to EN 50155, EN 50121-3-2, AREMA
Fire and smoke compliant to EN 45545 & NFPA 130
5 year warranty
Low inrush current
3 connectors: Input, output, auxiliary
Multiple options available
RoHS lead-free-solder product
Closed housing for chassis mounting
Extremely high efficiency and high power density
Overtemperature, overvoltage, overcurrent, and overload protections
