APPLICATION

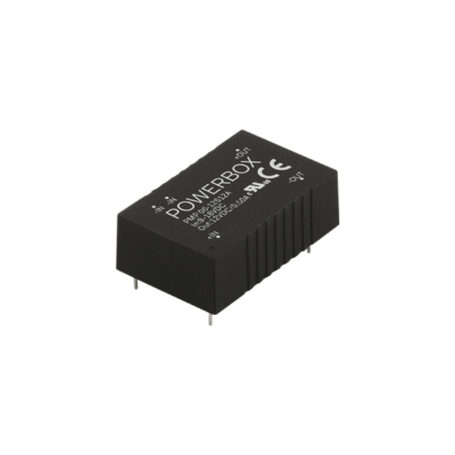

The Cosel PMP06 Series is a 6W medical-grade DC-DC converter designed for compact and reliable power solutions in demanding medical and industrial environments. It features reinforced insulation for 300VAC working voltage, 3000VAC input-to-output isolation, and 2MOOP safety compliance with a 6.6mm clearance and creepage distance. Certified to ANSI/AAMI ES60601-1 and EN60601-1 standards, it provides 2μA patient leakage current, making it ideal for medical applications.
The PMP06 Series supports wide 2:1 and 4:1 input ranges and offers single and dual output configurations with ±1% voltage accuracy and low ripple. Built-in protections include overvoltage, overload, and short-circuit safeguards with automatic recovery. It operates in temperatures from -40°C to +105°C, with derating above +88°C, and meets MIL-STD-810F for vibration and thermal shock. Its compact design, high MTBF of 4.7 million hours, and EMI/EMC compliance ensure reliable operation in sensitive applications, making it an excellent PCB-mounted solution for safe and efficient power conversion.
feature list
Low Power Medical Approved DC-DC Converter
2 x MOOP & 3kV Isolation
Single or Dual Outputs
Various Protection Features
< 1U High
Leakage Current <0.5mA
Remote On/Off
Reinforced insulation for 300VAC working voltage
Clearance and creepage distance: 6.6mm/2MOOP
3000VAC input to output
Built-in EMI Class A filter
ANSI/AAMI ES60601-1 safety approvals
EN60601-1 safety approvals
IEC60601-1 safety approvals
UL60950-1 safety approvals
EN60950-1 safety approvals
IEC60950-1 safety approvals
CE mark
Compliant to RoHs
Compliant to REACH
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| PMP06-12D | 9 - 18Vdc | 5V, 12V, 15V | 6W |
| PMP06-12S | 9 - 18Vdc | 3.3V, 5V, 12V, 15V, 24V | 6W |
| PMP06-24D | 18 - 36Vdc 9 - 36Vdc | 5V, 12V, 15V | 6W |
| PMP06-24S | 18 - 36Vdc 9 - 36Vdc | 3.3V, 5V, 12V, 15V, 24V | 6W |
| PMP06-48D | 36 - 75Vdc | 5V, 12V, 15V | 6W |
| PMP06-48S | 36 - 75Vdc | 3.3V, 5V, 12V, 15V, 24V | 6W |
| PMP06-5D | 4.5 - 9Vdc | 5V, 12V, 15V, 24V | 6W |
| PMP06-5S | 4.5 - 9Vdc | 3.3V, 5V, 12V, 15V, 24V | 6W |
| Please check datasheet for exact output model numbers | |||
