APPLICATION

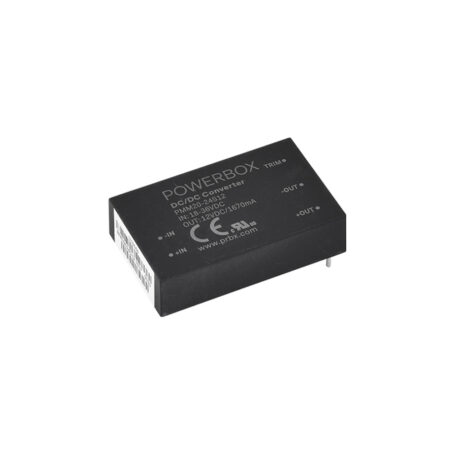

The Cosel PMM20 Series is a 20W medical-grade DC-DC converter designed for compact, high-performance applications. It features 5000VAC isolation, 2MOPP compliance, and 8mm clearance and creepage for medical safety. With wide 2:1 and 4:1 input ranges and single or dual output configurations, it ensures reliable power delivery across demanding conditions, including operation at altitudes up to 5000m.
The converter delivers precise voltage regulation with ±1% accuracy and low ripple, while integrated protections for overvoltage, overload, and short circuits ensure stability. Operating from -40°C to +105°C with derating, it complies with IEC/EN/ANSI/AAMI ES60601-1 standards and meets stringent EMI/EMC requirements for Class A and Class B. The PMM20 Series is ideal for medical, industrial, instrumentation, and laboratory environments requiring safe and efficient power conversion in a compact PCB-mounted solution.
feature list
Low Power Medical Approved DC-DC Converter
2 x MOPP & 5kV Isolation
2μA patient leakage current
Single or Dual Outputs
Various Protection Features
< 1U High
IEC 60601-1 safety approved
20 watts output power
Compact 1.6”x1” mechanical package
4:1 & 2:1 input range
8mm clearance & creepage
5000VAC isolation voltage
5000m operating altitude
5 years warranty
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| PMM20-12D | 9 - 18Vdc | 5V, 12V, 15V | 20W |
| PMM20-12S | 9 - 18Vdc | 5V, 12V, 15V, 24V | 20W |
| PMM20-24D | 18 - 36Vdc 9 - 36Vdc | 5V, 12V, 15V | 20W |
| PMM20-24DW | 9 - 36Vdc | 5V, 12V, 15V | 20W |
| PMM20-24S | 18 - 36Vdc 9 - 36Vdc | 5V, 12V, 15V, 24V | 20W |
| PMM20-24SW | 9 - 36Vdc | 5V, 12V, 15V, 24V | 20W |
| PMM20-48D | 36 - 75Vdc 18 - 75Vdc | 5V, 12V, 15V | 20W |
| PMM20-48DW | 36 - 75Vdc | 5V, 12V, 15V | 20W |
| PMM20-48S | 36 - 75Vdc 18 - 75Vdc | 5V, 12V, 15V, 24V | 20W |
| PMM20-48SW | 18 - 75Vdc | 5V, 12V, 15V, 24V | 20W |
| Please check datasheet for exact output model numbers | |||
