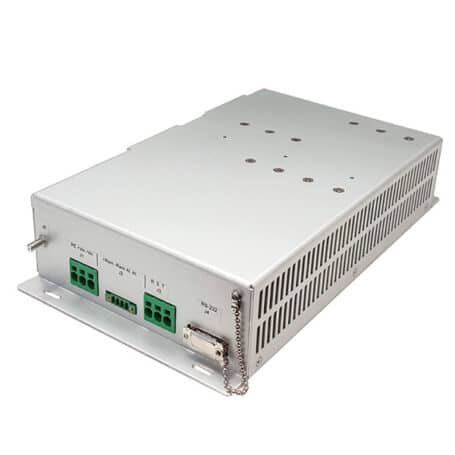

ODX-1300 Series

Input: 24/72/110Vdc
Outputs: 230 or 400Vrms ac
Power: 1300 VA
Tamb: -25 to 70°C
Dims: 315 x 178 x 66.5mm
EN62368 / EN50155 Approved
Made in Spain

Make an enquiry

Request a sample

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

Request a Sample

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

The ODX-1300 is a three phase sine-wave DC-AC inverter with galvanic isolation between input and output.

Functions:

Start-up of motors by means of a soft start. In the start-up, the output voltage and frequency rise linearly from 0V to set voltage and from 5Hz to set frequency. The start-up ramp slope may be changed via RS-232 port.

Set the rotation speed of a motor according to the appropriate Voltage/Frequency ratio.

Monitoring the status of the input and output.

Set and monitor parameters via RS-232.The ODX-1300 has a maximum output current protection.

This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage

feature list

Sine wave output voltage
Suitable for motors control
Adjustable output voltage
High input-output isolation 3000Vrms
Remote inhibit
Remote control via RS232
Alarm by isolated relay contacts
Remote ON/OFF opto-coupled
According to the standard EN50155
Fire and smoke: EN45545-2 approved

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
ODX-1300-7442	16.8-30VDC	250Vac nom 150 to 250VAC adjustable	1300VA
ODX-1300-7445	50-90VDC	250Vac nom 150 to 250VAC adjustable	1300VA
ODX-1300-7447	77-140VDC	250Vac nom 150 to 250VAC adjustable	1300VA
ODX-1300-7452	16.8-30VDC	400Vac nom 200 to 400VAC adjustable	1300VA
ODX-1300-7455	50-90VDC	400Vac nom 200 to 400VAC adjustable	1300VA
ODX-1300-7457	77-140VDC	400Vac nom 200 to 400VAC adjustable	1300VA

Downloads

Click on the link below for an instant download.

ODX-1300 Series datasheet
