APPLICATION

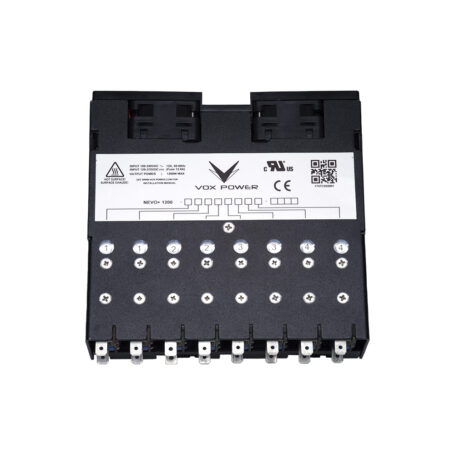

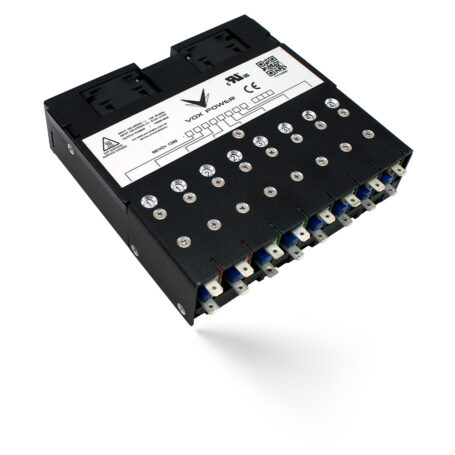

The NEVO+1200S, a configurable power supply, sets the benchmark for compact design in its category. Offering up to 1200W, it stands as an essential power solution for demanding industrial applications. Its small size, lightweight nature, low standby power consumption, and primary side inhibit functionality make it a crucial asset for highly specialized needs.

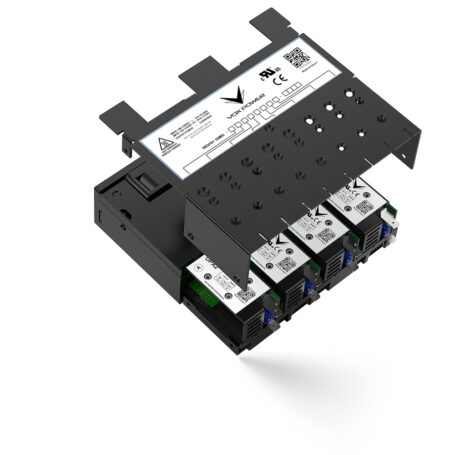

Each unit is skillfully composed of an input module, capable of supporting up to eight output modules. This unique design enables the creation of a customizable power solution that can include up to sixteen isolated outputs. The standard features of the NEVO+1200S include intelligent fan control for optimized thermal management, extensive output voltage adjustment capabilities, and primary side shutdown with an energy-efficient standby power consumption of less than 3 Watts.
For applications requiring the utmost silence, a low noise fan option is also available, enabling virtually silent operation. This makes the NEVO+1200S suitable for even the most noise-sensitive environments.
The NEVO+1200S configurable power supply serves a diverse range of applications. Its precision and stability cater to Test & Measurement and Laboratory & Analysis equipment. The LED lighting and Display sectors benefit from its energy-efficient solutions, while Robotics enjoy its adaptability.
In terms of safety and compliance, the series is fully certified with IEC/UL60950 & IEC/UL62368, adheres to EN61000 Immunity, and EN55022-B EMC Standards. These attestations, combined with market-leading specifications and robust design in application support, underscore the NEVO+1200S as a distinguished choice in power supply solutions.
feature list
Up to 1200 Watts of output power
IEC/UL60950 2nd & IEC/UL62368 2nd edition approved
Accurate current sharing
Primary side remote on/off function
Industry leading power density (21W/in³)
Parallel and series connection of modules
Standby power ≤ 3 Watts

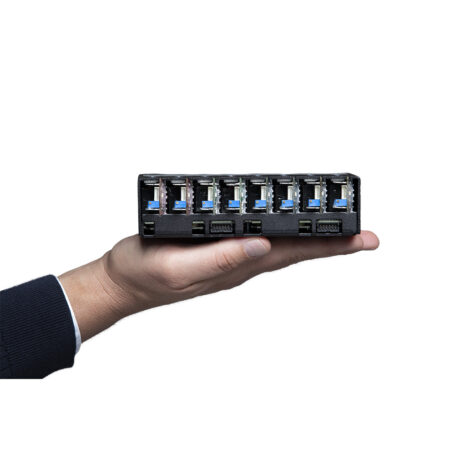

Lightest modular design – only 1.2kg – 1000Watts/kg
2 x 5V 1A bias supply • 6″ x 6″ x 1.61” footprint
Efficiency up to 89%
Field configurable
Low noise fan option
Remote current / voltage programming
RoHS compliant
3 Year warranty
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| NEVO+1200S | 85-264VAC | 1200W | |
| OP1 | 5Vdc nom (1.5 - 7.5Vdc adj) | 125W | |
| OP2 | 12Vdc nom (4.5 - 15Vdc adj) | 150W | |
| OP3 | 24Vdc nom (9 - 30Vdc adj) | 150W | |
| OP4 | 48Vdc nom(18 - 58Vdc adj) | 150W | |
| OP5 | 2 x 12Vdc nom (3.3 - 15Vdc adj) | 2 x 75W | |
| OP8 | 2 x 24Vdc nom (23.2 - 24.7Vdc adj) | 2 x 75W | |
| OPA2* | 12Vdc nom (4.5 - 15Vdc adj) | 300W | |
| OPA3* | 24Vdc nom (9 - 30Vdc adj) | 300W | |
| Note 1 - Output module, 30˚C base, 100% load, SR332 issue 2 Method I, Case 3, Ground, Fixed, Controlled | |||
| Note 2 - A = Remote Sense, B = External Voltage control, C = External constant current control, D = Current output signal, E = Current share, F =Over Voltage protection, G = Over temperature protection, H = Dual Slot module |
|||
