APPLICATION

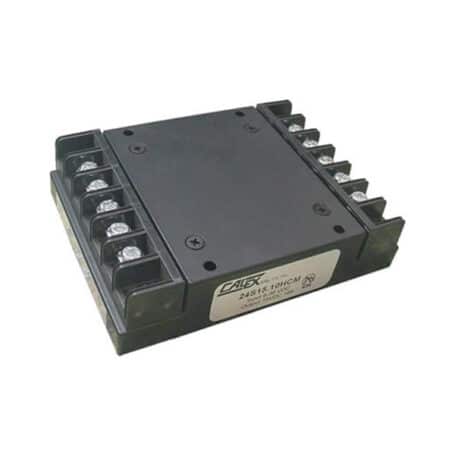

The 4: Input Voltage 50 W single HCM Series of DC/DC converters provide precisely regulated dc outputs. The output voltage is fully isolated from the input, allowing the output to be positive or negative polarity and with various ground connections.
The HCM Series meets the most rigorous performance standards in the industry standard case size for data communications and process control applications.
The 4: Input Voltage 50 Watt HCM Series includes remote sensing, output trim, and remote ON/OFF. Through holes are provided to allow easy mounting or add a heat sink for extended temperature use. Integrated terminal blocks allow for easy connectivity.
An optional DIN Rail Adapter is available for DIN Rail Mounting the HCM. See Selection Chart for ordering information.
feature list
4:1 Input voltage range
High power density
Chassis Mount design for excellent thermal performance
Terminal blocks for ease of use
Volt-seconds clamp and fast over voltage protection
Pulse-by-pulse current limiting, short circuit frequency foldback, dead short shut down
Over-temperature protection
Auto-softstart
low noise
Constant frequency during normal operation
Remote sense
The Remote ON/OFF
Super energy saving, 8 mA input idle current
Output trim with very low temperature coefficient
Good shock and vibration damping
Available in both RoHS and Non-RoHS construction.
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| 24S3.30HCM | 9-36VDC | 3.3V | 150W |
| 24S5.30HCM | 9-36VDC | 5V | 150W |
| 24S12.12HCM | 9-36VDC | 12V | 150W |
| 24S15.10HCM | 9-36VDC | 15V | 150W |
| 24S24.6HCM | 9-36VDC | 24V | 150W |
| 48S3.30HCM | 18-75VDC | 3.3V | 150W |
| 48S5.30HCM | 18-75VDC | 5V | 150W |
| 48S12.12HCM | 18-75VDC | 12V | 150W |
| 48S15.10HCM | 18-75VDC | 15V | 150W |
| 48S24.6HCM | 18-75VDC | 24V | 150W |
