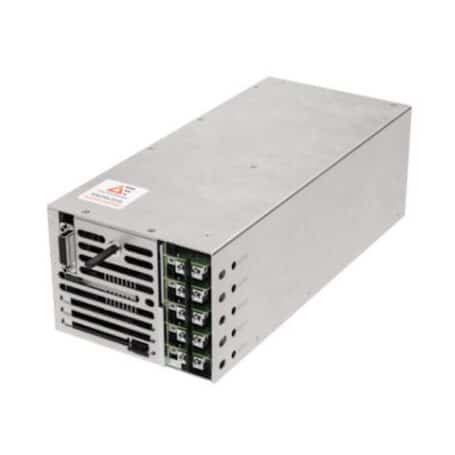

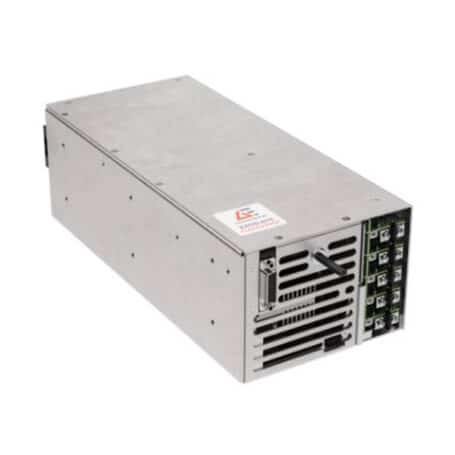

APPLICATION
The FC1500 Medical Capacitor Charging power supply, with a built in configurable ACDC power supply is designed to provide the system power needs for Medical laser applications.
The FC1500 can provide both capacitor charging and AC-DC low voltage system power due to it’s unique design and intelligent control.
The FC1500 can be used as a standalone capacitor charger, and if needed, various low voltage modules can be added to the unit to provide further system power. This functionality provides extra flexibility to power other systems and applications. Low voltage modules can be connected in parallel and in series for application that require higher voltage and current requirements.
The Capacitor charger capabilities has the highest level of performance due the unique built in intelligent control for capacitor charging, higher charge rates and power limit control.
There is also added control and monitoring capability via the analog and PMBus digital intelligent control system.
The combine capacitor charger and ACDC power supply design, improves end users time to market by simplifying EMI and Low leakage current approvals needed at end applications. The FC1500 also has IEC60101-1 3rd edition safety agency approval.
Let’s make this easy and call us today.
Follow us on Facebook, LinkedIn & Twitter for updates on all of the latest Power Conversion products.
Sign up to our monthly newsletter below, and never miss out on our updates of industry news, we release news/blog pages weekly with news from the power and display industries.
Relec Electronics holds the highest standards towards finding you the ideal solution for your application. We truly believe “Standard is Just the Beginning”. Get in touch with our technical team today.
feature list
Capacitor Charger
-Up to 1500 Watts
-0 to 1000 VDC
-Excellent pulse to pulse stability
-User power limit control

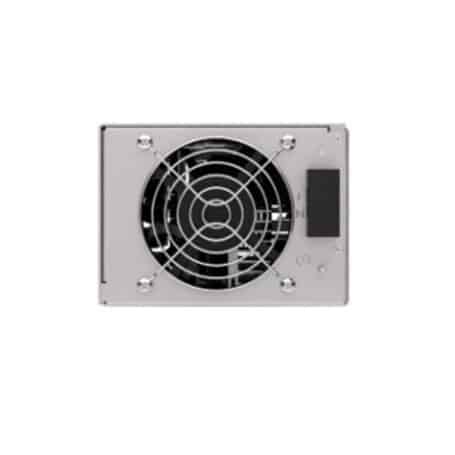

-Internal fan cooled

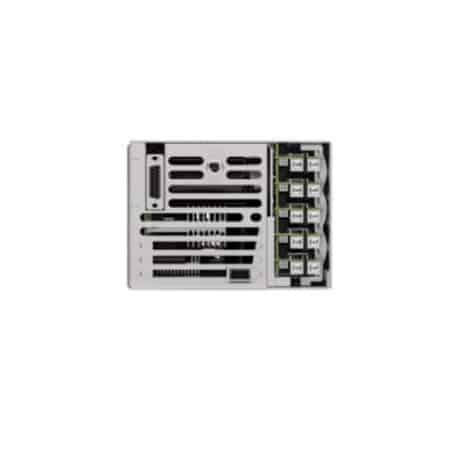

ACDC Power Supply
-Up to 800 Watts
-Up to 10 isolated outputs
-Series and parallel outputs — higher voltages/currents
Reliability
-MTBF > 900,000 hours
-Level 4 input surge protection
-3 W, 5 V auxiliary power on system signal connector J8
-3 W, 15 V auxiliary power on capacitor
charger D-SUB connector
-Safety approved to 3000 m altitude
-85% Efficiency
Flexibility
-Analog and digital management —
PMBus™ monitoring and control capability
TYPICAL APPLICATIONS
Capacitor Charger
-Medical laser application examples: Surgical lasers, laser treatment, laser aethetic treatments
ACDC Power Supply
-Low voltage system power
-Power for onboard computers and displays
-Pump power
-Power for cooling and heating
-Power for other treatments
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| FC15Mxxxx xxxx = Charge voltage | 85 - 264Vac | 0 - 1000Vdc | 1500W Output current < 6 A IOHV_Max = POHV_Max/VOHV for VOHV > 275 V |
| CmA | - | 2.5 - 6.0V | 105W |
| CmB | - | 6.0 -15.0V | 180W |
| CmC | - | 15.0 - 28.0V | 200W |
| CmD | - | 28.0 - 58.0V | 200W |
| CmE | - | 24.0 - 25.2V | 600W |
| CmF | - | 48.0 - 50.4V | 600W |
| CmG (Dual) | - | 3.0 - 30.0V 3.0 - 30.0V | 90W 90W |
| CmH (Dual) | - | 3.0 - 6.0V 3.0 - 30.0V | 36W 90W |
| CmA-W01 | - | 1.0 - 6.0V 21.0A max | 105W |
| CmB-W01 | - | 1.0 - 15.0V 15.0A max | 180W |
| CmC-W01 | - | 2.0 - 28.0V 8.3A max | 200W |
| CmD-W01 | - | 3.0 - 58.0V 4.16A max | 200W |
| CmK | - | 175 - 205V | 132W |
| Configuration Example 1 | Part number FC15M0700-ACCDH-P specifies the following product: FC15M—1500 W IEC60601-1 approved | Max capacitor charge voltage: 700 Volts | Slot 1: CmA, 5 V/21 A module Slot 2: CmC, 24 V/8.3 A module Slot 3: CmC, 24 V/8.3 A module Slot 4: CmD, 48 V/4.16 A module Slot 5: CmH, 5 V/6 A and 24 V/3 A dual module Option P: Preset required. Slot 3 and Slot 4 connected in parallel |
