APPLICATION

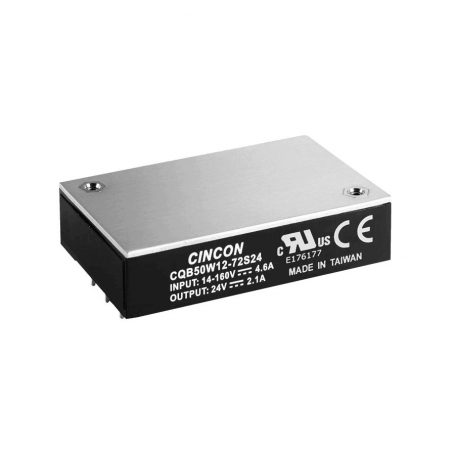

The CQB50W12 series of DC-DC converters offers 30- 50 watts of output power @ single output voltages of 5, 12, 24, 48VDC with industry standard quarter-brick. It has a wide (12:1) input voltage range of 14 to 160VDC (72VDC nominal) and 3000VDC basic isolation. Compliant with EN50155, EN45545, EN50121-3-2. High efficiency up to 89%, allowing case operating temperature range of -40°C to 100°C. An optional heat sink is available to extend the full power range of the unit. Very low no load power consumption (5mA), an ideal solution for energy critical systems. The standard control functions include remote on/off (positive or negative) and +10%, -20% adjustable output voltage. Fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage and overtemperature and continuous short circuit conditions. CQB50W12 series is designed primarily for common railway applications of 24V, 36V, 48V, 72V, 96V, 110V nominal voltage and also suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications.
feature list
30-50W Isolated Output
Efficiency to 89%
Fixed Switching Frequency
12:1 Input Range
Regulated Outputs
Remote On/Off
Low No Load Power Consumption
Over Temperature Protection
Over Voltage/Current Protection
Continuous Short Circuit Protection
Quarter Brick Size meet industrial standard
CE Mark Meets 2014/30/EU
UL60950-1 2nd (Basic Insulation) Approval
Meet EN50155 with External Circuits
Fire & Smoke Meet EN45545-2
5000m Operating Altitude
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| CQB50W12-72S05 | 14V-160V | 5V | 30W |
| CQB50W12-72S12 | 14V-160V | 12V | 50W |
| CQB50W12-72S15 | 14V-160V | 15V | 50W |
| CQB50W12-72S24 | 14V-160V | 24V | 50W |
| CQB50W12-72S48 | 14V-160V | 48V | 50W |
