APPLICATION
Advanced Energy’s CoolX®1000 series, part of our low voltage solutions, is the world’s only fanless 1000 W modular power supply.

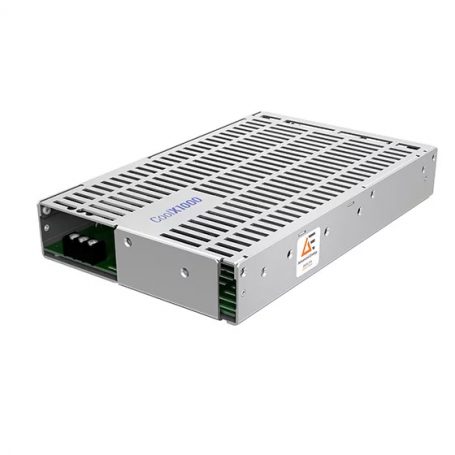

Packaged in a compact 254 mm x 165.1 mm x 39.1 (10 in x 6.5 in x 1U) U-channel design, the CoolX1000 provides up to 1000 W without any requirement for fan or base plate cooling, eliminating acoustic noise detrimental to scientific and medical applications, as well as applications
sensitive to vibration or where fan cooling is not available. The CoolX1000 also offers increased flexibility by allowing system designers to monitor and control power supply performance — essential for staving off process disruption — using either analog or digital communications (PMBus™).
feature list
Up to 1000W
Up to 12 outputs
All outputs isolated (1850VAC)
Variable Fan Speed Control
MTBF >200000 hrs
93% Efficiency
Level 4 Input Surge Protection
Reverse Energy Protection
23.5W Auxiliary Power
Safety Approved to 5000m Altitude
5 Year Warranty
Analog and Digital Management
- PMBus™ monitoring and control capability
Field Confi gurable
- Plug and Play Power
Series and Parallel Outputs
- Higher voltages/currents
Mounting Options
- Base/Side and DIN-Rail mounting
Certification
- IEC60601-1 3rd Edition certified
- IEC60601-1-2 4th Edition EMC certified
- 2 MOPP
- Dual Fused
- Suitable for Type B and BF rated applications
- ISO13485
Industrial
- IEC60950, IEC62368-1 certified
- SEMI F47 compliant
Defence/Aero
- MIL810G certified
- CE101, CE102 characterised
| MODEL NUMBER | INPUT RANGE | OUTPUT | POWER |
|---|---|---|---|
| CX10S | 85-264VAC 120-300VDC | Standard | 1000W |
| CX10M | 85-264VAC 120-300VDC | Medical | 1000W |
| CmA | - | 2.5 - 6.0V | 105W |
| CmB | - | 6.0 -15.0V | 180W |
| CmC | - | 15.0 - 28.0V | 200W |
| CmD | - | 28.0 - 58.0V | 200W |
| CmE | 22.8 - 25.2V | 600W | |
| CmF | 45.6 - 50.4V | 600W | |
| CmG (Dual) | 3.0 - 30.0V 3.0 - 30.0V | 90W 90W |
|
| CmH (Dual) | 3.0 - 6.0V 3.0 - 30.0V | 36W 90W |
|
| CmM | - | 1.0 - 6.0V 21A max | 105W |
| CmN | - | 1.0 - 15.0V 15A max | 180W |
| CmP | - | 1.0 - 28.0V 8.33A max | 200W |
| CmQ | - | 3.0 - 58.0V 4.17A max | 200W |
