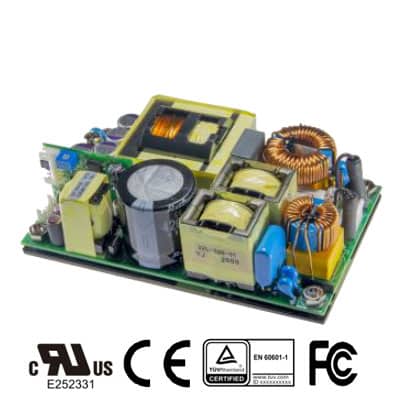

CFM500M Series

Input: 90-264Vac
Outputs: 12V to 48V
Power: 500 Watt
Tamb: -40°C to +85°C
Dims: 5" x 3" x 1.55"
Approval IEC/EN/UL 60601-1 2 x MOPP

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

The CFM500M series of open frame, medical, switching ACDC power modules are highly efficient, reliable, compact, high power density, single output AC/DC power modules.
The CFM500M is fully protected against short circuit and over-voltage conditions. Cincon’s world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that the CFM500M series power module is extremely reliable.

Their high efficiency allows a very minimal power loss in end equipment, resulting in higher reliability, ease of thermal management, and regulatory approvals for an environmentally friendly end product.

The CFM500M series are designed for medical applications and are fully approved to IEC/EN/UL 60601-1 2 x MOPP and EN 55011, 47 CFR FCC Part 18.

feature list

Universal Input Range 80~264Vac
High Efficiency up to 94.5%
3”x 5” Compact Size
Class I
No Load Power Consumption<0.5W
Approval IEC/EN/UL 60601-1 2 MOPP
Approval EN 55011, 47 CFR FCC Part 18
Active PFC Meets EN 61000-3-2
Meets IEC/EN 60335-1
Operating Altitude 5000m
High Power Density up to 20.96W/Inch3
390W Natural, 470 ~ 500W Conduction Convection
Over Temperature Protection
PS On/Off Remote Control
Power Good & Power Fail Signal
+5V Stand-by, 12V Fan Output
Low Inrush Current

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
CFM500M120	90-264AC	12V	500W
CFM500M240	90-264AC	24V	500W
CFM500M360	90-264AC	36V	500W
CFM500M480	90-264AC	48V	500W

Downloads

Click on the link below for an instant download.

CFM500M Series Datasheet
CFM500M Series Application Note
