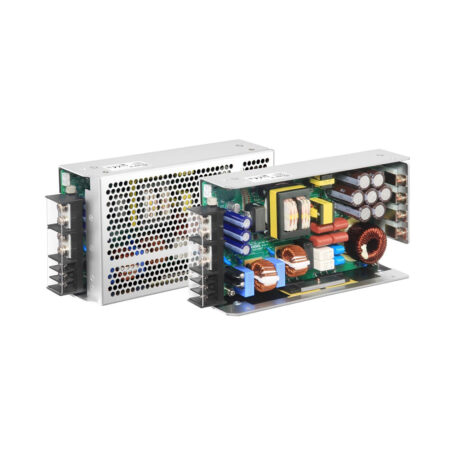

AEA1000F

Input: 85- 264Vac
Outputs: 24 - 48Vdc
Power: 1000 Watt
Tamb: -20 to 70°C
Dims: 50 x 127 x 228.6mm
UL62368-1, EN60601-1, & EN62368-1 Approved
Made in Japan

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

The AEA1000F series from Cosel delivers up to 1,008W of output power, designed for medical equipment with both convection and forced air cooling options. It features peak output currents of up to 100A, depending on the input voltage and cooling configuration.

The input voltage range is from AC85 to 264V, with a frequency of 50/60Hz. Power factor is maintained at 0.98 for AC100V input and 0.95 for AC230V input. Inrush current ranges from 20-40A for AC100V input and 40/40A for AC230V input.

Output models include 24V at 42A (100A peak), 36V at 28A (66.7A peak), and 48V at 21A (50A peak) under forced air cooling. Convection cooling allows lower output currents. Ripple noise, line regulation, and load regulation surpasses standard limits, ensuring even more reliable performance.

The unit includes overcurrent and overvoltage protection, recovering automatically. Optional features include alarms for input and output voltage and auxiliary outputs (primarily designed for fans) of 12V1A and 5V1A in forced air cooling mode. It complies with various safety standards such as UL62368-1 and ANSI/AAMI ES60601-1, along with EMC standards including FCC Part15 Class B and CISPR32-B.

The unit weighs approximately 1.5kg and measures 50×127×228.6mm. It supports cooling methods of convection or forced air.

feature list

Single output with triple peak current
High efficiency
Low profile
Medical Isolation Grade 2MOPP (Suitable for body floating application)
Meets OVCⅢ (Applying for EN62477 certification.)
Complies with SEMI F47
Meets UL508 (Option: -T5)
Communication Function
Peak Power

MODEL NUMBER	INPUT RANGE	OUTPUT	POWER
AEA1000F-24	85 - 264Vac	24V, 30.0A (Peak: 100.0A) 230VAC, Convection Cooling 24V, 42.0A (Peak: 100.0A) 230VAC, Forced Air Cooling	720.0W (Peak: 2400W) 230VAC, Convection Cooling 1008W (Peak: 2400W) 230VAC, Forced Air Cooling
AEA1000F-36	85 - 264Vac	36V, 20.0A (Peak: 66.7A) 230VAC, Convection Cooling 36V, 28.0A (Peak: 66.7A) 230VAC, Forced Air Cooling	720.0W (Peak: 2401W) 230VAC, Convection Cooling 1008W (Peak: 2401W) 230VAC, Forced Air Cooling
AEA1000F-48	85 - 264Vac	48V, 15.0A (Peak: 50.0A) 230VAC, Convection Cooling 48V, 21.0A (Peak: 50.0A) 230VAC, Forced Air Cooling	720.0W (Peak: 2400W) 230VAC, Convection Cooling 1008W (Peak: 2400W) 230VAC, Forced Air Cooling

Downloads

Click on the link below for an instant download.

AEA Series Datasheet
