A range of high reliability Chassis Mount and Eurocassette DC DC converters for railway / transportation and other demanding industrial applications running from DC system voltages.
Typical applications include trainborne wifi, lighting, windscreen wipers and HVAC control systems.
Power ranges from 20 to 1000W are available with inputs covering all standard battery voltages of 12, 24, 48, 72 and 110Vdc. Products are also available with a 10:1 range allowing operation on any system voltage between 24 – 110Vdc.
We have extensive experience in the railway industry with full understanding of railway norms EN50121 / EN50155 and RIA12. Call us today for a detailed proposal which will meet your requirements.
Keeping you on track…
Our extensive experience in the railway industry is backed up by a full understanding of railway norms EN50121 / EN50155 and RIA12 to keep you pointed in the right direction.
-
EC7BW18 ECRT/EDRT Series
Input: 10-160V dc- Single range
Outputs: 5V to +/-24V dc
Power: 20 Watt
Tamb: -40°C to +100°C
Dims: 4.45" x 2.33" x 0.68" (113 x 59.2 x 21.6mm)
3000V ac Isolation -
XRCM60 Series
Input: 9-36V or 16.8-137.5V dc
Outputs 12, 15 or 24Vdc
Power: 60 Watt
Tamb: -40 to +70°C
Dims: 172 x 50 x 32mm
EN50121-3-2 / EN50155 Compliant
IEC62368-1 and CSA/UL 62368-1 Approved
5 Year Warranty
Made in Slovakia -
Q Series
Input: Wide input (2:1)
Outputs: 5 to 48V
Power: 120 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 20mm (3U x 4TE)
UL / CE EN62368-1 Approved
5 Year Warranty
Made in Slovakia -
RCM150 Series
Input: 14.4-50.4V or 43.2-154V dc
Outputs 12 or 24Vdc
Power: 150 Watt
Tamb: -40 to +85°C
Dims: 164.5 x 96 x 36.1mm
IEC / EN 62368-1 Approved
5 year warranty
Made in Slovakia -
K Series (DC)
Input: Wide input (4:1)
Outputs: 5 to 48V
Power: 150 Watt
Tamb: -40 to +71°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia -
HP series
Input: 12.5 to 154Vdc
Outputs: 5 to 96V
Power: 150 Watt
Tamb: -40 to +70°C
Dims: 164 x 111 x 20mm (3U x 4TE)
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia -
LFM200M Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 200 Watt
Tamb: -40°C to +80°C
Dims: 78.49 x 57.91 x 25.40 mm
Conduction Cooled
IEC/EN/UL 60601-1 2 MOPP Approved -
LFM200S Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 200 Watt
Tamb: -40°C to +90°C
Dims: 78.49 x 57.91 x 25.40 mm
Conduction Cooled
IEC/EN/UL 62368-1 Approved -
CVS-280 Series
Input: 400 to 1100Vdc
Outputs: 24V, 36V, 72V, 110Vdc
Power: 280W nom, 400W pk
Tamb: -40 to 85°C
Dims: 243 x 162 x 64.5mm
Conforms to EN62368 / EN50155
Made in Spain -
HR Series
Input: 12 to 168Vdc
Outputs: 12 to 96V
Power: 288 Watt
Tamb: -40 to +70°C
Dims: 168 x 111 x 80mm (3U x 16TE)
UL / CE EN60950 Approved
5 Year Warranty
Made in Slovakia -
LFM300M Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +80°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved
IEC/EN/UL 60601-1 2 MOPP Approved -
LFM300S Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 300 Watt
Tamb: -40°C to +90°C
Dims: 104 x 57.9 x 25.4 mm
IEC/EN/UL 62368-1 Approved -
RCM300 Series
Input: 14.4-50.4V or 43.2-154V dc
Outputs 12 or 24V dc
Power: 300 Watt
Tamb: -40 to +85°C
Dims: 188.6 x 116 x 38mm
IEC / EN 62368-1 Approved
5 year warranty
Made in Slovakia -
LFM420S Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 420 Watt
Tamb: -40°C to +80°C
Dims: 129.4 x 83.5 x 25.4 mm
IEC/EN/UL 62368-1 Ed 3.0 Approved -
LFM420M Series
Input: 85-264Vac
Outputs: 12 to 54V
Power: 420 Watt
Tamb: -40°C to +80°C
Dims: 129.79 x 83.63 x 25.40 mm
Conduction Cooled
IEC/EN/UL 60601-1 2 MOPP Approved -
CRS-500 Series
Input: 24/36/48/72/110Vdc
Outputs: 24 to 110V dc
Power: 500 Watts
Tamb: -25 to 70°C
Dims: 266 x 180 x 55mm
Tested to EN60950 / EN50155
Made in Spain -
RCM500 Series
Input: 43.2-100.8V or 66-154V dc
Outputs: 24V dc
Power: 500 Watt
Tamb: -40 to +85°C
Dims: 209 x 141 x 40mm
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia -

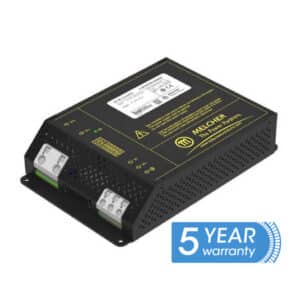

RCM1000 Series
Input: 66-154V dc
Outputs: 24V
Power: 1000 Watt
Tamb: -40 to +85°C
Dims: 209 x 141 x 46mm
UL / CE EN60950 Approved
5 year warranty
Made in Slovakia -
CRS-1000 Series
Input: 24/36/48/72/110Vdc
Outputs: 24 to 110V dc
Power: 1000 Watts
Tamb: -25 to 70°C
Dims: 268 x 228 x 55mm
Approved to EN62368 / EN50155
Made in Spain -
CBS-10K Series
Inputs: 24/36/72/110Vdc
Output: 500Vdc
Power: 6000W nom, 10000W pk
Tamb: -40 to 55°C (full load)
Dims: 455 x 217 x 85mm
Conforms to EN62368 / EN50155
Made in Spain
