APPLICATION

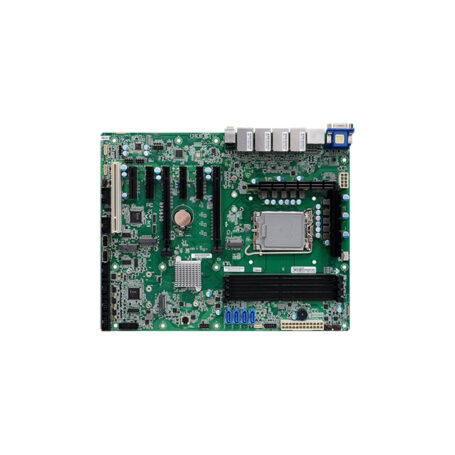

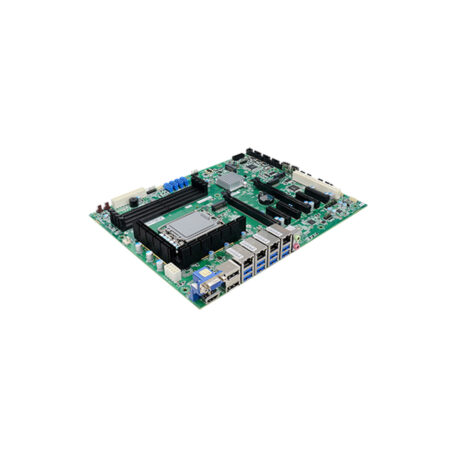

The RPS630-R680E/Q670E is a powerful desktop ATX system designed to support 14th, 13th, and 12th Gen Intel® Core™ processors with a TDP of up to 125W. Engineered with the Intel® R680E or Q670E chipset, it delivers high-performance computing for industrial and commercial applications. It supports up to 192GB of DDR5 memory across four UDIMM slots, ensuring exceptional multitasking and data handling capabilities.

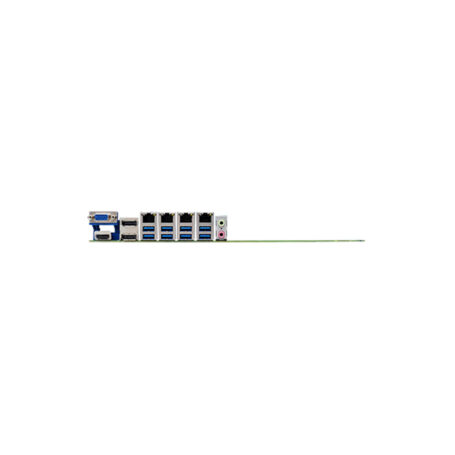

The system features rich I/O, including up to four 2.5GbE LAN ports, six COM ports, and multiple USB 3.2 and 2.0 interfaces. Quad-display support is enabled through VGA (R680E), HDMI, and dual DP++, with 4K resolution for superior visual output. Expandability is maximized with dual PCIe x16 slots, four PCIe x4 slots, one PCI slot, and multiple M.2 expansion options for NVMe storage, Wi-Fi, or OOB management.
With a robust design and compatibility with Windows and Linux operating systems, the RPS630-R680E/Q670E ensures reliability in operating temperatures ranging from -5°C to 65°C. Certified with CE, FCC, RoHS, and UKCA standards, it is ideal for demanding environments requiring high performance and scalability.
feature list
Supports 14th, 13th, and 12th Gen Intel® Core™ processors with up to 125W TDP
Four DDR5 UDIMM slots supporting up to 192GB of memory
Quad-display support with VGA (R680E), HDMI, and dual DP++ at 4K resolution
Rich I/O with up to four 2.5GbE LAN ports, six COM ports, and multiple USB interfaces
Dual PCIe x16 slots and four PCIe x4 slots for advanced expandability
Multiple M.2 slots for NVMe storage, Wi-Fi, or OOB management
RAID 0/1/5/10 support with four SATA 3.0 ports
Wide operating temperature range from -5°C to 65°C
Certified with CE, FCC, RoHS, and UKCA standards
ATX form factor with dimensions of 305mm x 244mm for compatibility with standard cases
| MODEL NUMBER | CHIPSET | MEMORY | PORTS |
|---|---|---|---|
| RPS630-Q670E | Intel® R680E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fa |
| RPS630-R680E | Intel® Q670E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 2 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan |
