APPLICATION

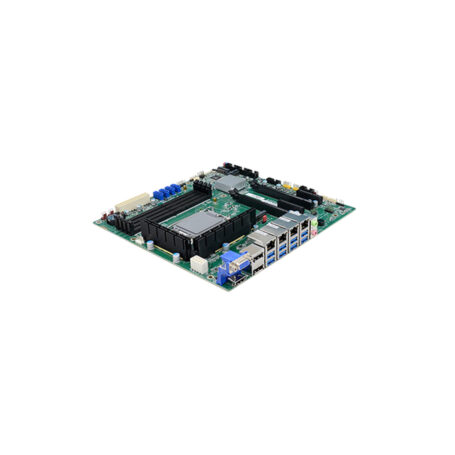

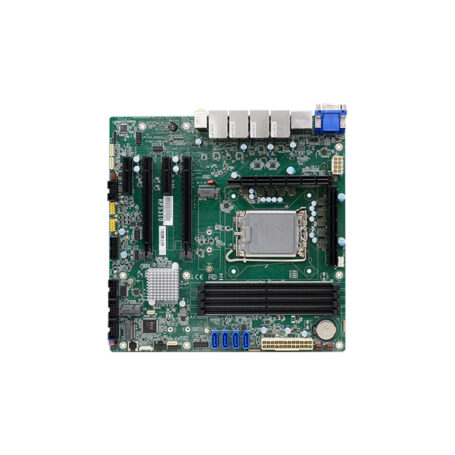

The RPS310-R680E/Q670E is a high-performance microATX system designed for 14th, 13th, and 12th Gen Intel® Core™ processors, supporting up to 125W TDP. It features four DDR5 UDIMM slots for up to 192GB of memory, dual PCIe x16 slots, and multiple M.2 expansions for storage and connectivity. With integrated Intel UHD Graphics, it delivers 4K resolution across up to four displays using VGA, HDMI, and DP++.
This system includes extensive I/O with four 2.5GbE LAN ports, four COM ports, and multiple USB 3.2 Gen 1/Gen 2 connections, catering to versatile industrial and office applications. A robust design ensures reliable operation in temperatures ranging from -5°C to 65°C. Certified with CE, FCC, RoHS, and UKCA, the RPS310 is a dependable solution for advanced computing environments requiring expandability and high performance.
feature list
Supports 14th, 13th, and 12th Gen Intel® Core™ processors with up to 125W TDP
Four DDR5 UDIMM slots supporting up to 192GB of memory
Quad display support with VGA, HDMI, and dual DP++ at 4K resolution
Dual PCIe x16 slots, two PCIe x4 slots, and three M.2 expansion slots
Four 2.5GbE LAN ports with Intel® i226 controllers

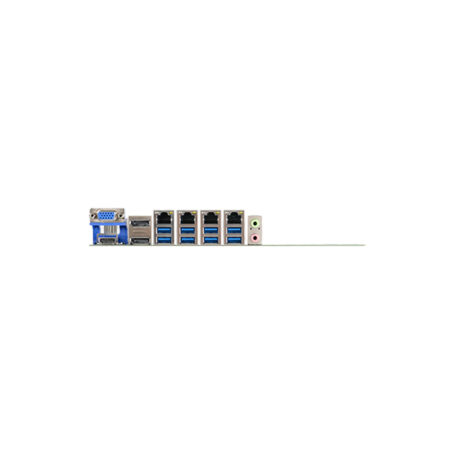

Extensive I/O including four COM ports, four USB 3.2 Gen 2, and six USB 3.2 Gen 1
Integrated Intel® UHD Graphics
Wide operating temperature range from -5°C to 65°C
Supports RAID 0/1/5/10 with four SATA 3.0 ports
Certified with CE, FCC, RoHS, and UKCA standards
| MODEL NUMBER | CHIPSET | MEMORY | PORTS |
|---|---|---|---|
| RPS310-Q670E | Intel® Q670E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan |
| RPS310-R680E | Intel® R680E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan |
| RPS310-Q670E | Intel® Q670E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan |
| RPS310-R680E | Intel® R680E Chipset | 4 UDIMM | 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan |
