PH14FEI

APPLICATION

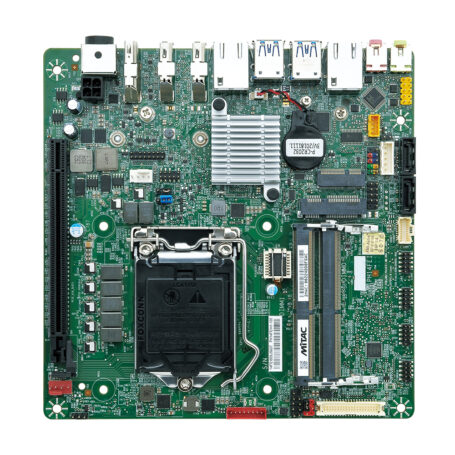

Introducing the PH14FEI, Thin Mini-ITX boards, designed to support 8th and 9th Gen Intel Coffee Lake processors. These boards come equipped with either the H310 or Q370 chipset, offering a range of features to suit your computing needs.

The models with the H310 chipset provide robust performance with support for up to 32GB of DDR4 SO-DIMM memory (2×260 Pin, 1.2V, 2666MHz). Connectivity options include HDMI, DisplayPort, line out, mic-in, 4x USB 3.0, and 2x RJ45. For display interfaces, they offer LVDS or eDP, while expansion slots include PCIe x16, 2x M.2 (1x M-key 2242/2280 + 1x E-key 2230), and 1x F/S miniPCIe. Storage options include 2x SATA III ports, and additional ports comprise 4x serial port headers and 1x MiAPI header. These models require a DC-in power input of 12V (mini DIN 4pin female) and operate within a temperature range of 0°C to 60°C.

The models with the Q370 chipset are enhanced with vPro support and similarly support up to 32GB of DDR4 SO-DIMM memory. They feature HDMI, 2x DisplayPort, line out, mic-in, 4x USB 3.1, and 2x RJ45 for connectivity. Display interfaces include LVDS or eDP, and expansion options are similar with PCIe x16, 2x M.2 slots, and 1x F/S miniPCIe. They also offer 2x SATA III ports, 4x serial port headers, and 1x MiAPI header. Power input is via 12V DC-in (mini DIN 4pin female), and these models also operate within the 0°C to 60°C temperature range.

Whether equipped with the H310 or Q370 chipset, the PH14FEI family delivers high performance and versatility in a compact form factor, ideal for a wide range of applications.
