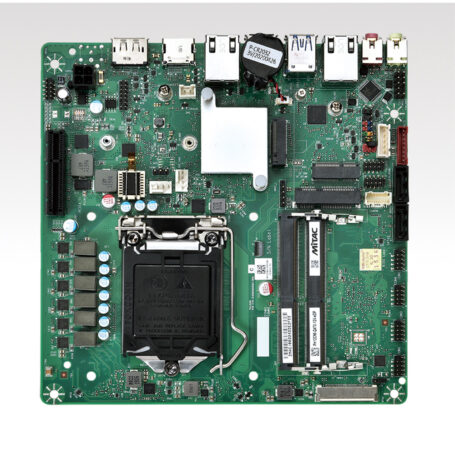

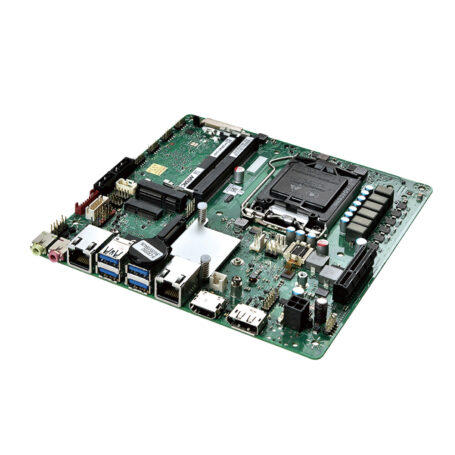

PH12CMI

Processor: 10th Gen Intel Comet Lake
Memory: Up to 64GB
Form Factor: Thin Mini-ITX
Supports: HDMI, Display Port and LVDs/eDP
Size: 271 x 199 x 224 mm
Operating Temperature -0°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

Introducing the PH12CMI, Thin Mini-ITX boards, designed to support 10th Gen Intel Comet Lake processors with the Q470E chipset. These boards are built for high performance and versatility, making them ideal for a wide range of applications.

Both models in the PH12CMI support up to 64GB of DDR4 SO-DIMM memory (2×260 Pin, 1.2V, 2933/2666/2400MHz). They feature robust connectivity options including HDMI, DisplayPort, line out, mic-in, 4x USB 3.2, and 2x RJ45. For display interfaces, they come with LVDS. Expansion slots include PCIe x4, 2x M.2 (1x M-key 2242/2280 + 1x E-key 2230), and 1x mPCIe. Storage solutions are provided by 2x SATA III ports, and additional ports include 4x serial port headers and 1x MiAPI header.

With these features, the PH12CMI is designed to deliver powerful performance and flexibility in a compact form factor, ensuring it meets the needs of various demanding computing environments.

feature list

Intel Comet Lake Core i9/i7/i5/i3/Pentium/Celeron LGA1200 processor (Support up to 10core 35W, 8 Core 65W)
Intel Q470E Chipset
Intel vPro technology support
2 x SODIMM DDR4 2933/2666/2400 max 64GB
Support triple display for DisplayPort, HDMI, LVDS/eDP
2 x Intel® Gigabit Ethernet
1 x PCIe x4 (Gen 3) slot
1 x M.2 M key 2280 (PCIe,SATA)
1 x M.2 E key 2230 (PCIe,USB 2.0)
1 x mPCIe full size slot (PCIe/SATA/USB)
TPM header (option TPM module board NPCT750)

MODEL NUMBER	PROCESSOR	MEMORY	PORTS
PH12CMI-Q470-19V	10th Gen Intel Comet Lake Processor, Q470E chipset	64GB	1xHDMI, 1xDP, 4xUSB 3.2, 2xRJ45,1xMic-in, 1xLine-out, 1xLVDS, 2xSATA III, 1xPCIex4, 2xM.2 (1xM-key 2242/2280 + 1xE-key 2230), 1x mPCIe, 4xSerial Port header,1xMiAPI header.
PH12CMI-Q470-12V	10th Gen Intel Comet Lake Processor, Q470E chipset	64GB	1xHDMI, 1xDP, 4xUSB 3.2, 2xRJ45,1xMic-in, 1xLine-out, 1xLVDS, 2xSATA III, 1xPCIex4, 2xM.2 (1xM-key 2242/2280 + 1xE-key 2230), 1x mPCIe, 4xSerial Port header,1xMiAPI header.
