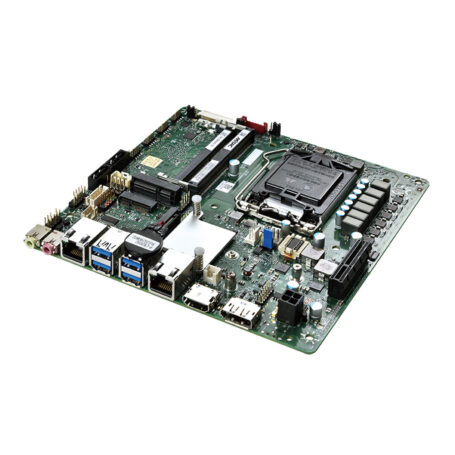

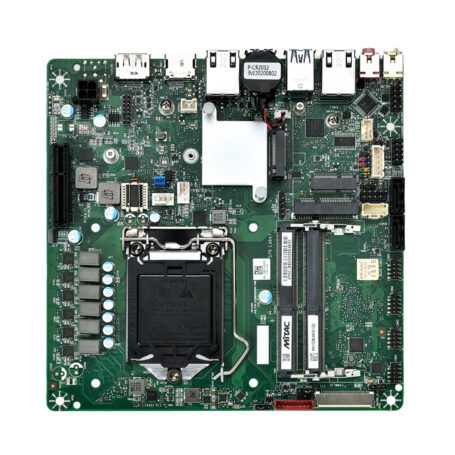

PH11CMI

Processor: 10th Gen Intel Comet Lake
Memory: Up to 64GB
Form Factor: Thin Mini-ITX
Supports: HDMI, Display Port and LVDs/eDP
Size: 271 x 199 x 224 mm
Operating Temperature -0°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

Introducing the PH11CMI, Thin Mini-ITX boards, engineered to support 10th Gen Intel Comet Lake processors with the H410 chipset. These boards offer robust performance and a variety of features to meet diverse computing needs.

Both models in the PH11CMI support up to 64GB of DDR4 SO-DIMM memory (2×260 Pin, 1.2V, 2933/2666/2400MHz). Connectivity options include HDMI, DisplayPort, line out, mic-in, 4x USB 3.0, and 2x RJ45. For display interfaces, they feature LVDS, and expansion slots include PCIe x4, 2x M.2 (1x M-key 2242/2280 + 1x E-key 2230), and 1x mPCIe. Storage solutions comprise 2x SATA III ports, and additional ports include 4x serial port headers and 1x MiAPI header.

With these features, the PH11CMI family is designed to deliver high performance and versatility in a compact form factor, making it ideal for a wide range of applications.

feature list

Intel Comet Lake Core i9/i7/i5/i3/Pentium/Celeron LGA1200 processor (Support up to 10core 35W, 8 Core 65W)
Intel H410 Chipset
2 x SODIMM DDR4 2933/2666/2400 max 64GB
Support Dual display for DisplayPort, HDMI, LVDS/eDP
2 x Intel® Gigabit Ethernet
1 x PCIe x4 (Gen 3) slot
1 x M.2 M key 2280 (PCIe,SATA)
1 x M.2 E key 2230 (PCIe,USB 2.0)
1 x mPCIe full size slot (SATA/USB)
TPM header (option TPM module board NPCT750)
DC-in 12V/24V power input
(12~24V through optional D2D module)

MODEL NUMBER	PROCESSOR	MEMORY	PORTS
PH11CMI-H410-19V	10th Gen Intel Comet Lake Processor, H410 chipset	64GB	1xHDMI, 1xDP, 4xUSB 3.0, 2xRJ45,1xMic-in, 1xLine-out, 1xLVDS, 2xSATA III, 1xPCIex4, 2xM.2 (1xM-key 2242/2280 + 1xE-key 2230), 1x mPCIe, 4xSerial Port header,1xMiAPI header.
PH11CMI-H410-12V	10th Gen Intel Comet Lake Processor, H410 chipset	64GB	1xHDMI, 1xDP, 4xUSB 3.0, 2xRJ45,1xMic-in, 1xLine-out, 1xLVDS, 2xSATA III, 1xPCIex4, 2xM.2 (1xM-key 2242/2280 + 1xE-key 2230), 1x mPCIe, 4xSerial Port header,1xMiAPI header.
