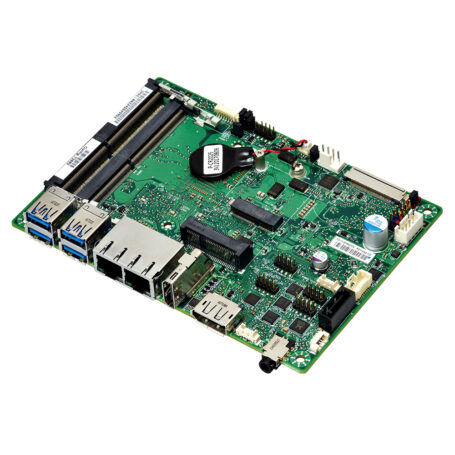

PD11KS

Processor: Intel Kabylake-U
Memory: Up to 32GB
Form Factor: 3.5″ Single Board Computer
Supports: 3 x HDMI, VGA & LVDS/eDP
Size: 415 x 315 x 210 mm
Operating Temperature 0°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

Introducing the PD11KS, 3.5″ Single Board Computers (SBCs), designed for robust performance with Intel Kabylake-U and Skylake-U processors, each equipped with heatsinks for efficient thermal management. These boards come with various processor options, including the Celeron 3965U, i3-7100U, i5-7300U, i7-7600U, Celeron 3955U, i3-6100U, i5-6300U, and i7-6600U, catering to different performance needs.

Each model in the PD11KS supports up to 32GB of DDR4 SO-DIMM memory (2×260 Pin, 1.2V, 2133/2400MHz). They offer comprehensive connectivity options, including HDMI, DisplayPort, 4x USB 3.0, 2x RJ45, and an audio combo jack (mic-in and line-out). For display interfaces, they feature LVDS. Expansion capabilities are enhanced with an M.2 2230 slot and a full mini-PCIe slot. Additional features include 3x RS232, 1x RS232/422/485, and a MiAPI header.

These models operate within a temperature range of 0°C to 60°C, ensuring reliable performance in various environments. The PD11KS provides powerful and versatile computing solutions in a compact form factor, making them ideal for a wide range of applications.

feature list

Intel® Skylake/Kaby Lake Core i7/i5/i3/Celeron ULV processors
Intel® vPro technology support
2x DDR4 SO-DIMM and support up to 32GB
Support triple display for HDMI, Display Port, and LVDS/eDP
1x SATA III
2x Intel® Gigabit Ethernet
2x USB 2.0, 4x USB 3.0, and 4x COM
8V~24V wide voltage power input

Search:

MODEL NUMBER	PROCESSOR	MEMORY	OPERATING TEMPERATURE	PORTS
PD11KS-3965U-HSK	Intel Kabylake-U Celeron 3965U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-7100U-HSK	Intel Kabylake-U i3-7100U Processor, with heatsink.	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-7300U-HSK	Intel Kabylake-U i5-7300U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-7600U-HSK	Intel Kabylake-U i7-7600U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-3955U-HSK	Intel Skylake-U Celeron 3955U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 1xMiAPI header.
PD11KS-6100U-HSK	Intel Skylake-U i3-6100U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-6300U-HSK	Intel Skylake-U i5-6300U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.
PD11KS-6600U-HSK	Intel Skylake-U i7-6600U Processor, with heatsink	32GB	0°C ~ 60°C	1xHDMI, 1xDP, 4xUSB3.0, 2xRJ45, 1xAudio Combo Jack(Mic-in and Line-out), 1xLVDS, 1xM.2 (2230), 1xmini-PCIe (Full), 3xRS-232, 1xRS-232/422/485, 1xMiAPI header.

Showing 1 to 8 of 8 entries

Downloads

Click on the link below for an instant download.

PD11KS Datasheet
