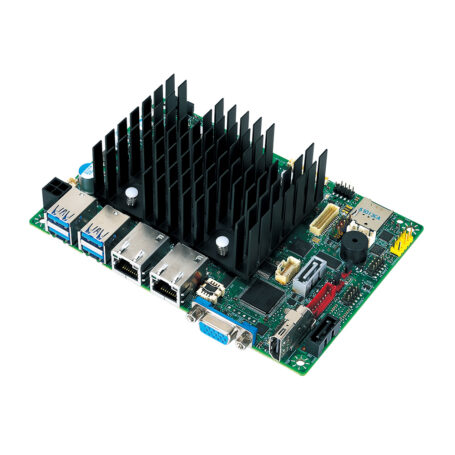

PD10AS

Processor: Intel Apollo Lake Processor
Memory: Up to 8GB
Form Factor: 3.5″ Single Board Computer
Supports: HDMI, VGA & LVDS/eDP
Size: 440 x 332 x 191 mm
Operating Temperature -40°C to +85°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

Introducing the PD10AS, 3.5″ Single Board Computers (SBCs), designed for robust performance with Intel Apollo Lake processors and equipped with heatsinks for optimal thermal management. These boards are available with a variety of processors, including the E3930, E3940, E3950, N3350, and N4200, catering to different performance requirements.

Each model in the PD10AS family supports up to 8GB of DDR3L SO-DIMM memory (1×204 Pin, 1.35V, 1866MHz). They offer comprehensive connectivity options, including 4x USB 3.0 ports, HDMI, VGA, 2x RJ45, LVDS (40-pin), and eDP (40-pin). Expansion capabilities are enhanced with a full PCIe slot and an M.2 2230 slot. Additional features include 4x serial port headers, a SIM card holder, and a MiAPI header.

The PD10AS models are designed to operate in a wide temperature range, with some models rated for -40°C to 85°C, and others for 0°C to 70°C, ensuring reliable performance in various environmental conditions. This versatility makes the PD10AS family ideal for a broad range of applications, providing a compact yet powerful computing solution.

feature list

Intel® Braswell Celeron / Pentium BGA processor
2x DDR3L SO-DIMM and support up to 8GB
Support triple display for HDMI, VGA and LVDS/eDP
Support 1x PCIe x1 (Gen 3) slot and 2x Mini PCIe slot
2x SATA III
1x Intel® Gigabit Ethernet
3x USB 2.0, 4x USB 3.0 and 4x COM
8V~24V wide voltage power input

Search:

MODEL NUMBER	PROCESSOR	MEMORY	OPERATING TEMPERATURE	PORTS
PD10AS-E3930-WT	Intel Apollo Lake Processor E3930 Processor, with heatsink	8GB	-40°C ~ 85°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-E3940-WT	Intel Apollo Lake Processor E3940 Processor, with heatsink	8GB	-40°C ~ 85°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-E3950-WT	Intel Apollo Lake Processor E3950 Processor, with heatsink	8GB	-40°C ~ 85°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-E3930-NT	Intel Apollo Lake Processor E3930 Processor, with heatsink	8GB	0°C ~ 70°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-E3940-NT	Intel Apollo Lake Processor E3940 Processor, with heatsink	8GB	0°C ~ 70°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-E3950-NT	Intel Apollo Lake Processor E3540 Processor, with heatsink	8GB	0°C ~ 70°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.
PD10AS-N3350-NT	Intel Apollo Lake Processor N3350 Processor, with heatsink	8GB	0°C ~ 70°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header,1xSIM card holder, 1xMiAPI Header.
PD10AS-N4200-NT	Intel Apollo Lake Processor N4200 Processor, with heatsink	8GB	0°C ~ 70°C	4xUSB3.0, 1xHDMI, 1xVGA, 2xRJ45, 1xLVDS (40pin), 1xeDP (40pin), 1xPCIe (Full), 1xM.2 (2230), 4xSerial Port header, 1xSIM card holder, 1xMiAPI Header.

Showing 1 to 8 of 8 entries

Downloads

Click on the link below for an instant download.

PD10AS Datasheet
