PD10AI

Processor: Intel Apollo Lake
Memory: Up to 8GB
Form Factor: Thin Mini-ITX
Supports: HDMI, Display port & LVDS/eDP
Size: 271 x 199 x 224 mm
Operating Temperature -0°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

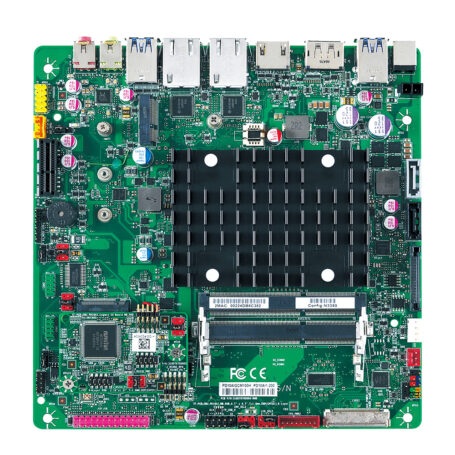

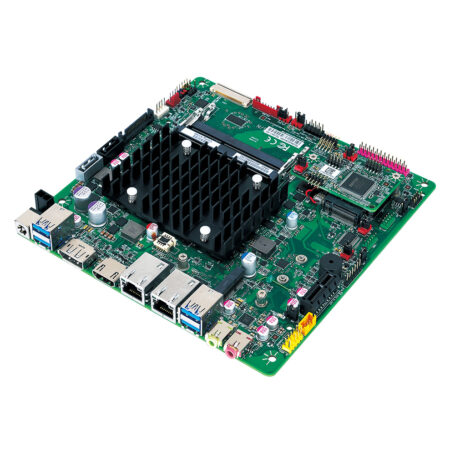

Introducing the PD10AI Thin Mini-ITX boards, powered by Intel Apollo Lake processors. These boards offer robust performance with a compact design, featuring options with either the N3350 or N4200 processors. Both models support up to 8GB of DDR3L SO-DIMM memory and include multiple connectivity options: HDMI, DisplayPort, line out, mic-in, 4x USB 3.0, 2x RJ45, LVDS (40-pin), eDP (40-pin), and PCIe 2.0 x1. They also provide versatile storage solutions with 2x SATA III ports (one multiplexed with an M.2 slot) and additional serial and parallel/MiAPI ports.

Operating within a temperature range of 0°C to 60°C and requiring a DC-in power input of 8-24V, the PD10AI family is designed for reliability and versatility in various applications. Whether you choose the N3350 or the N4200 model, these Thin Mini-ITX boards deliver high performance in a sleek, space-saving package.

feature list

Intel® Apollo Lake
2x DDR3L SO-DIMM and support up to 8GB
Support triple display for HDMI, Display Port and LVDS/eDP
Support PCIe x1 (Gen 3) slot and M.2 slot
2x SATA III
2x Intel® Gigabit Ethernet
2x USB 2.0, 4x USB 3.0, 2x COM and 1x Parallel Port / MIAPI (configurable digital I/O)
9V~24V wide voltage power input

MODEL NUMBER	PROCESSOR	MEMORY	PORTS
PD10AI-N4200	Intel Apollo Lake Processor N4200	8GB	1xHDMI, 1xDP, 1xLine out, 1xMic-in, 4xUSB 3.0, 2xRJ45, 1xLVDS (40Pin), 1xeDP (40Pin), 1xPCIe 2.0x1, 2xSATA III (1x port,1x mutiplexed with a M.2 slot), 2xSerial Port header, 1xParallel port(R0C)/ 1xMiAPI(R01)
PD10AI-N3350	Intel Apollo Lake Processor N3350	8GB	1xHDMI, 1xDP, 1xLine out, 1xMic-in, 4xUSB 3.0, 2xRJ45, 1xLVDS (40Pin), 1xeDP (40Pin), 1xPCIe 2.0x1, 2xSATA III (1x port,1x mutiplexed with a M.2 slot), 2xSerial Port header, 1xMiAPI.
