APPLICATION

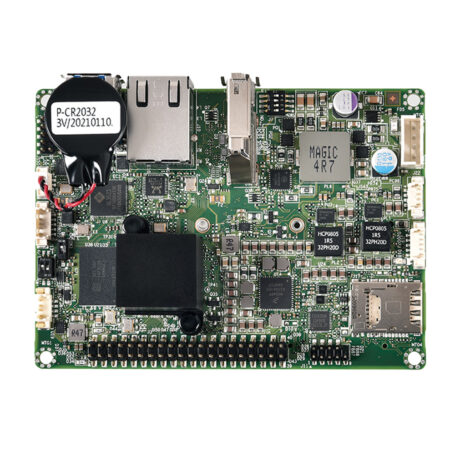

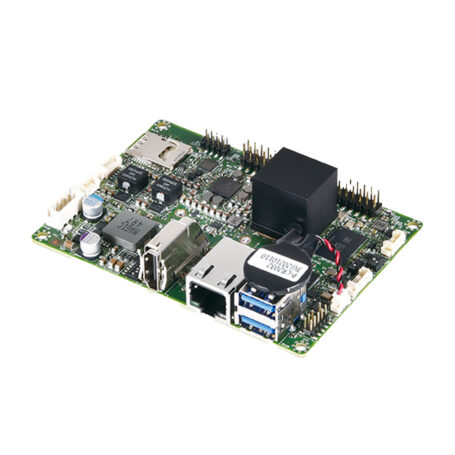

Introducing the ND118T, 2.5″ Single Board Computers (SBCs), featuring the NXP i.MX8M Dual and Quad SoC processors. Equipped with heatsinks, these boards come with built-in LPDDR4 memory (1GB, 2GB, or 4GB) and eMMC storage (8GB, 16GB, or 32GB). Connectivity includes 2x USB 3.0, HDMI 2.0, RJ45, and various headers for USB 2.0, audio, and Raspberry Pi 40-pin. Expansion options feature a Mini PCIe slot and a Micro-SIM/Micro SD combo card slot.
Operating within a temperature range of 0°C to 60°C, the ND118T boards are powered via a 12V-24V internal 4-pin power connector with an additional 4-pin power switch. With a compact form factor and versatile performance, the ND118T is ideal for a wide range of applications.
feature list
NXP i.MX8M Family
- 8M Quad (4 x Cortex-A53 @ 1.3 GHz, Industy SKU)
- 8M Dual (Cortex-A53 @ 1.3 GHz, Industry SKU)
System memory: LPDDR4 1600MHz (1GB / 2GB / 4GB)
System Storage: 8GB / 16GB / 32GB eMMC
2 x USB 3.0 , 2 x USB 2.0 , 1 x COM (RS232/422/485)
Micro SD card (SDXC, 32GB~2TB)
Support 4K HDMI display
Support optional LVDS dual channel
Support Giga LAN Port
1 x mPCIe slot (Full size, PCIe/USB)
1 x Raspberry Pi compatible 40 general purpose pin Header
12~24V Wide Voltage DC-in
Linux support: Yocto 3.2, Android 9 (coming soon), Ubuntu 20.04 (coming soon)
| MODEL NUMBER | PROCESSOR | MEMORY | OPERATING TEMPERATURE | PORTS |
|---|---|---|---|---|
| ND118T-8MD-1G8G-LVDS | NXP i.MX8M Dual SoC Processor, with heatsink | 1GB LPDDR4 800MHz build-in memory, 8GB build-in eMMC storage | 0°C ~ 60°C | 1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 1 x RJ45 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x LVDS connector 1 x 12V-24V internal 4-pin power connector |
| ND118T-8MD-2G16G-LVDS | NXP i.MX8M Dual SoC Processor, with heatsink | 2GB LPDDR4 1600MHz build-in memory, 16GB build-in eMMC storage | 0°C ~ 60°C | 1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 1 x RJ45 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x LVDS connector 1 x 12V-24V internal 4-pin power connector |
| ND118T-8MQ-4G32G-LVDS | NXP i.MX8M Quad SoC Processor, with heatsink | 4GB LPDDR4 1600MHz build-in memory, 32GB build-in eMMC storage | 0°C ~ 60°C | 1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 1 x RJ45 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x RS232/422/485 Header, 1 x LVDS connector 1 x 12V-24V internal 4-pin power connector |
