ND108T

Processor: NXP i.MX8M
Memory: Up to 32GB
Form Factor: 2.5″ Single Board Computer
Supports: HDMI & DisplayPort
Size: 32.6 x 31.3 x 18.2 mm
Operating Temperature 0°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

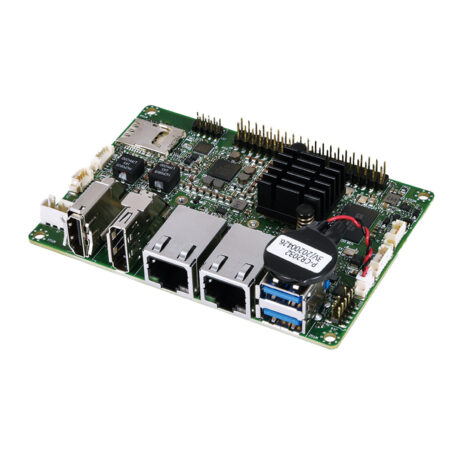

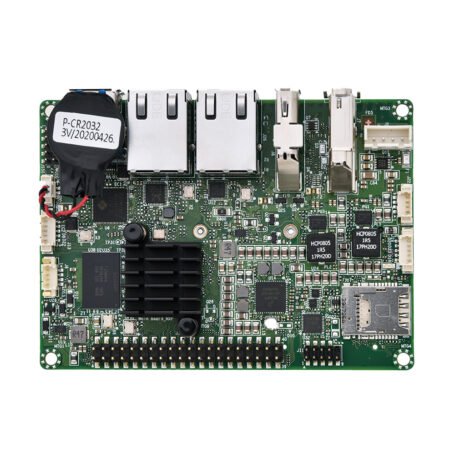

Introducing the ND108T, 2.5″ Single Board Computers (SBCs) featuring NXP i.MX8M processors. Available with either the Dual or Quad SoC processor, these boards are equipped with heatsinks and built-in LPDDR4 memory (1GB, 2GB, or 4GB) and eMMC storage (8GB, 16GB, or 32GB). Connectivity includes 2x USB 3.0, HDMI 2.0, RJ45, and various headers for USB 2.0, audio, and Raspberry Pi 40-pin. Expansion options feature a Mini PCIe slot and a Micro-SIM/Micro SD combo card slot.

Operating within a temperature range of 0°C to 60°C, the ND108T boards are powered via a 12V internal 4-pin power connector with an additional 4-pin power switch. With a compact form factor and versatile performance, the ND108T family is ideal for a wide range of applications.

"We need a Arm-Based SBC For Our Laboratory Instrument Equipment"

feature list

NXP i.MX8M Family
- 8M Quad (4 x Cortex-A53 @ 1.3 GHz, Industy SKU)
- 8M Dual (Cortex-A53 @ 1.3 GHz, Industry SKU)
System memory: LPDDR4 1600MHz (1GB / 2GB / 4GB)
System Storage: 8GB / 16GB / 32GB eMMC
Micro SD card (SDXC, 32GB~2TB)
2 x USB 3.0 , 2 x USB 2.0 , 1 x COM (RS232/422/485)
Support optional dual display: HDMI & DisplayPort
Support optional LVDS dual channel
Support optional dual Giga LAN Ports
1 x mPCIe slot (Full size, PCIe/USB)
1 x Raspberry Pi compatible 40 general purpose pin Header
Linux support: Yocto 2.5, Android 9
12V DC-in
Yocto 3.2 (coming soon), Ubuntu 20.04 (coming soon)

Search:

MODEL NUMBER	PROCESSOR	MEMORY	OPERATING TEMPERATURE	PORTS
ND108T-8MD-1G8G-LVDS	NXP i.MX8M Dual SoC Processor, with heatsink	1GB LPDDR4 1200MHz build-in memory, 8GB build-in eMMC storage	0°C ~ 60°C	1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 1 x RJ45 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x LVDS connector 1 x 12V internal 4-pin power connector
ND108T-8MD-2G16G-LVDS	NXP i.MX8M Dual SoC Processor, with heatsink	2GB LPDDR4 1600MHz build-in memory, 16GB build-in eMMC storage	0°C ~ 60°C	1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 1 x RJ45 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x LVDS connector 1 x 12V internal 4-pin power connector
ND108T-8MQ-4G32G-LVDS	NXP i.MX8M Quad SoC Processor, with heatsink	4GB LPDDR4 1600MHz build-in memory, 32GB build-in eMMC storage	0°C ~ 60°C	1 x Mini PCIe slot, 1 x Micro-SIM/Micro SD combo card slot 2 x USB 3.0, 1 x HDMI2.0, 2 x RJ45, 1 x DisplayPort 1.2, 2 x USB2.0 ports header, 1 x USB 2.0 OTG port header, 1 x Line-out/Mic-in, 1 x 4-pin power switch, 1 x Raspberry Pi 40-pin header, 1 x RS232/422/485 Header, 1 x LVDS connector 1 x 12V internal 4-pin power connector

Showing 1 to 3 of 3 entries

Downloads

Click on the link below for an instant download.

ND108T Datasheet
