APPLICATION

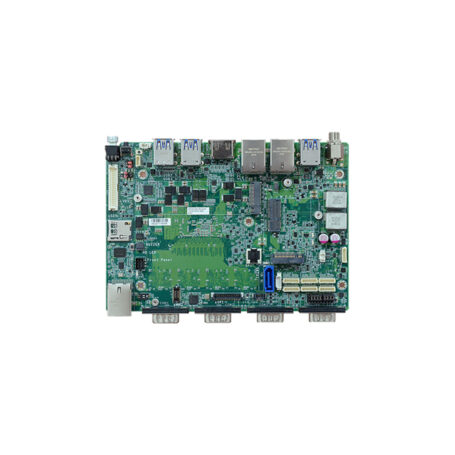

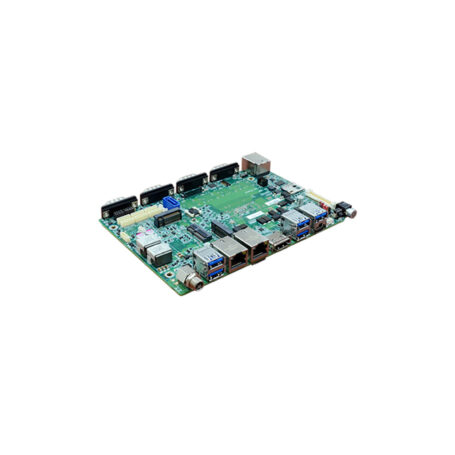

The MTH253 is a high-performance 4” Single Board Computer (SBC) powered by Intel® Core™ Ultra processors, offering up to 32GB LPDDR5 memory and Intel® Arc™ Graphics for 4K triple-display support via HDMI, LVDS, and USB-C. Designed for versatility, it provides dual 2.5GbE and 1GbE networking, multiple COM ports, USB 3.2, SATA 3.0, and M.2 slots for storage, wireless connectivity, and 5G expansion.
With a rugged design for temperatures ranging from -5°C to 65°C, TPM 2.0 security, and compliance with CE and FCC standards, the MTH253 is built for demanding industrial environments. Its compact size and extensive I/O make it ideal for applications in automation, edge computing, IoT, and digital signage.
feature list
Intel® Core™ Ultra Processor with configurations up to 16 cores and 28W TDP
Dual Channel LPDDR5/x 6400MHz memory down, up to 32GB
Triple display support: HDMI, LVDS, USB-C DP Alt. Mode with resolutions up to 4K

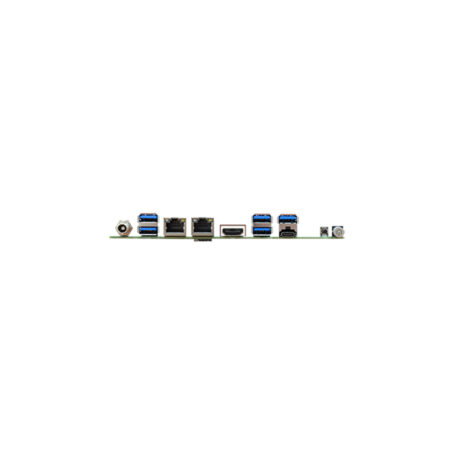

Rich I/O: 2 x 2.5GbE, 1 x GbE, 5 x USB 3.2, 1 x USB-C, 5 COM ports
Multiple expansion slots: M.2 M key (PCIe Gen4 x4), M.2 B key (4G/5G support), M.2 E key
Intel® Arc™ Graphics supporting OpenGL 4.6, Direct X 12.2, and hardware encoding/decoding
Wide operating temperature range: -5°C to 65°C, suitable for industrial environments
Realtek ALC888S audio codec for high-quality audio
Built-in TPM 2.0 for enhanced security
Compact 4" SBC form factor with CE, FCC Class B, and RoHS certifications
| MODEL NUMBER | CPU | MEMORY | OPERATING TEMPERATURE |
|---|---|---|---|
| MTH253-BN-32U7165H | Intel® Core™ Ultra 7 165H, 16 Cores, 28w | 32GB | -5°C ~ 65°C |
| MTH253-BN-16U5125U | Intel® Core™ Ultra 5 125U, 12 Cores, 15w | 16GB | -5°C ~ 65°C |
