APPLICATION

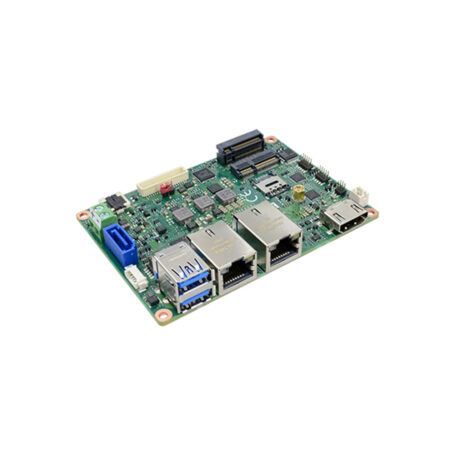

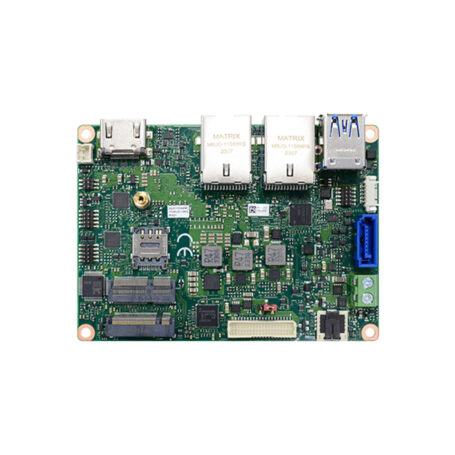

The EHL051 is a 2.5-inch Pico-ITX SBC designed for embedded and industrial applications, powered by Intel® Atom® Elkhart Lake processors. It supports single DDR4-3200 SO-DIMM memory up to 32GB, providing excellent performance in a compact form factor. With dual display outputs (HDMI + LVDS), multiple I/O options, and flexible expansion through M.2 slots, this board is an ideal solution for IoT, industrial automation, and transportation systems.
feature list
Power-efficient CPUs with up to 4 cores, operating at 1.9GHz–3.0GHz
Supports single-channel DDR4-3200 SO-DIMM up to 32GB with in-band ECC
HDMI (4096x2160 @24Hz) and LVDS (1920x1200 @60Hz)
Dual Intel® GbE LAN ports and USB 3.2 Gen2
Includes M.2 E key for Wi-Fi/BT and M.2 B key
Two RS-232/422/485 ports, two USB 2.0, and eight GPIO pins
Features SATA 3.0 with 6Gbps transfer speed and optional 5V SATA power
Operates in extreme temperatures (-40°C to 85°C)
Equipped with TPM 2.0
Pico-ITX form factor (100mm x 72mm) with fanless operation
| MODEL NUMBER | CPU | MEMORY | OPERATING TEMPERATURE | PORTS |
|---|---|---|---|---|
| EHL051-TCD-6425RE | Intel® Atom x6425RE | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-TCD-6416RE | Intel® Atom x6416RE | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-TCD-6214RE | Intel® Atom x6214RE | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-TCD-6425E | Intel® Atom x6425E | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-TCD-6413E | Intel® Atom x6413E | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-TCD-6211E | Intel® Atom x6211E | 1 DDR4 SO-DIMM | -40°C ~ 85°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-BCD-J6412 | Intel® Pentium J6412 | 1 DDR4 SO-DIMM | -5°C ~ 65°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
| EHL051-BCD-N6210 | Intel® Celeron N6210 | 1 DDR4 SO-DIMM | -5°C ~ 65°C | HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0 |
