ECX700-AL

Processor: Intel® Atom® Processor E3900 Series Apollo Lake Quad Core CPU
Memory: Up to 64GB
Form Factor: Rugged Embedded System
Supports: HDMI, USB, COM, WIFI+BT
Size: 217 x 188 x 87 mm
Mechanical: IP67/IP69K
Operating Temperature -20°C to +70°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

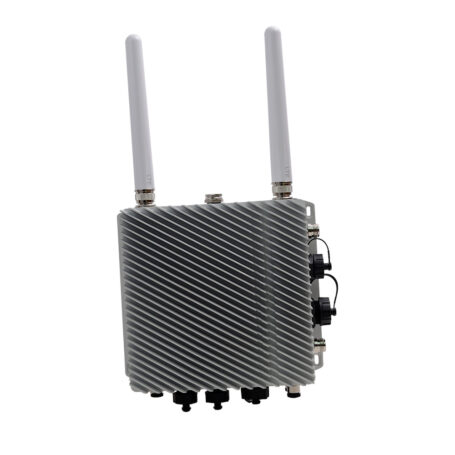

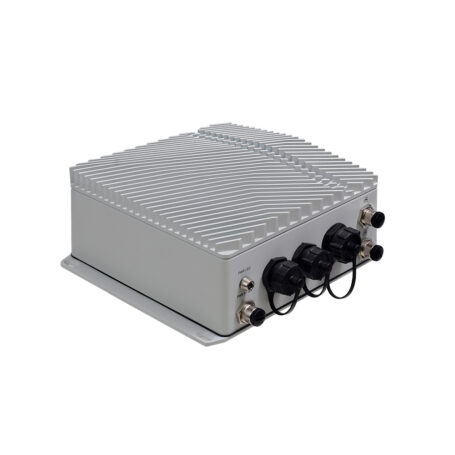

The DFI ECX700-AL is an ultra-rugged embedded system built for extreme industrial environments. Powered by Intel Atom® E3900 Series processors, it offers efficient performance in a compact, wall-mountable design. With a wide 9–36V power input range and an operating temperature of -40°C to 70°C, it ensures reliability in harsh conditions.

Its IP67/IP69K-rated enclosure protects against dust, water, shock, and vibration, meeting military-grade standards. The system supports WiFi and LTE for wireless connectivity, while dual Intel® Gigabit Ethernet ports enable high-speed networking. Equipped with 4GB onboard DDR3L RAM and eMMC storage options up to 64GB, it also provides Mini PCIe and M.2 slots for expansion.

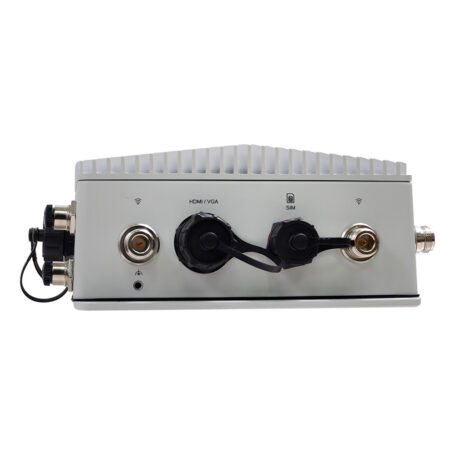

Featuring an HDMI port with 4K support, USB 3.0, RS232, and CAN bus, the ECX700-AL ensures seamless industrial connectivity. Certified for CE, FCC Class A, and RoHS, it is ideal for automation, transportation, military, and edge computing applications.

feature list

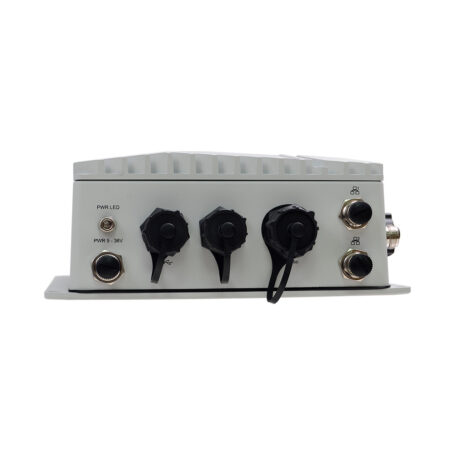

Wide voltage power range: 9~36V for flexible power input
Extreme temperature tolerance: -40° to 70°C
Ultra-rugged IP67/IP69K enclosure with military-grade shock and vibration resistance
Supports both WiFi and LTE for reliable wireless connectivity
Powerful Intel Atom® E3900 Series processors
4GB onboard DDR3L RAM with expandable options
Dual Intel® Gigabit Ethernet ports
HDMI output supporting up to 4K resolution
Multiple expansion options, including Mini PCIe and M.2
Wall-mountable, compact, and durable design

Search:

MODEL NUMBER	CPU	MEMORY
750-ECX700-100G	Intel® Atom® x7-E3950	4GB 64GB eMMC
750-ECX700-200G	Intel® Atom® x5-E3930	4GB 32GB eMMC
750-ECX700-300G	Intel® Atom® x5-E3930	4GB 32GB eMMC
750-ECX700-400G	Intel® Atom® x5-E3940	4GB 64GB eMMC
750-ECX700-500G	Intel® Atom® x7-E3950	4GB 64GB eMMC
750-ECX700-600G	Intel® Atom® x7-E3950	4GB 64GB eMMC

Showing 1 to 6 of 6 entries

Downloads

Click on the link below for an instant download.

ECX700-AL Datasheet
