APPLICATION

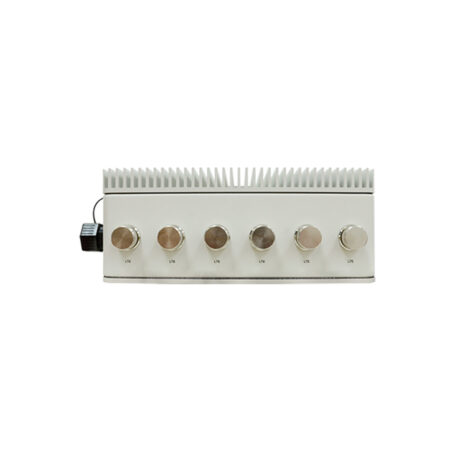

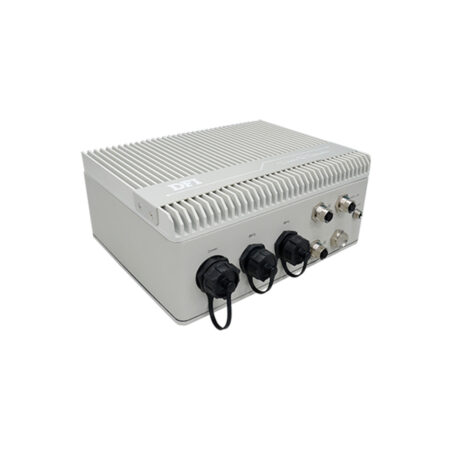

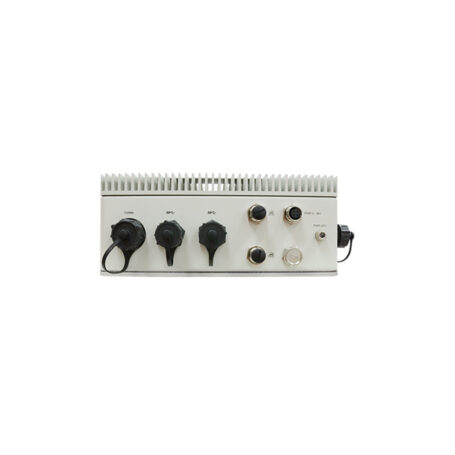

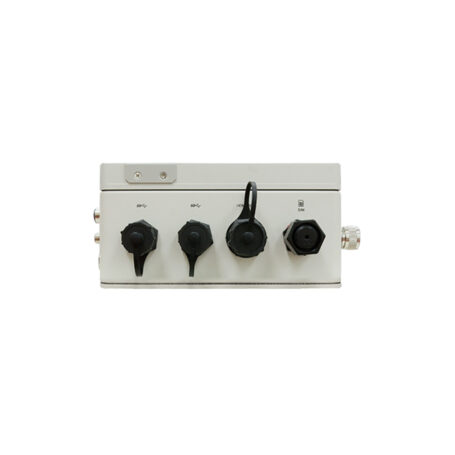

The ECX700-ADP is a rugged embedded system designed for extreme environments, powered by 12th Gen Intel® Core™ processors. Featuring an IP67/IP69K-rated enclosure, it withstands harsh conditions, including wide temperature ranges from -20°C to 70°C, vibration, and shock in compliance with military-grade standards. The system includes onboard 8GB memory and an M.2 SSD with up to 256GB storage, ensuring robust and reliable performance.
With flexible I/O options, the ECX700-ADP supports dual GbE LAN, USB 3.2, HDMI, and COM/CAN bus connections, as well as wireless expansion for Wi-Fi, LTE, or 5G. Its compact design, wide voltage power input (9–36V), and wall-mount capability make it ideal for industrial automation, transportation, and remote IoT deployments. Certified with CE, FCC, and RoHS, the ECX700-ADP is a dependable solution for mission-critical applications.
feature list
IP67/IP69K-rated enclosure protecting against dust, water, and harsh environments
Powered by 12th Gen Intel® Core™ processors with onboard 8GB memory
Wide operating temperature range from -20°C to 70°C
Dual GbE LAN ports using Intel® i225IT controllers ensuring reliable networking
Support COM and CAN bus protocols enabling industrial communication
Expandable with M.2 slots enabling Wi-Fi, LTE, or 5G modules
Supports HDMI output delivering resolution up to 3840x2160 at 30Hz
Wide voltage power input range of 9–36V with M12 DC connector
Compact rugged design with wall-mount capability
Certified CE, FCC, and RoHS ensuring industrial-grade reliability
| MODEL NUMBER | CPU | MEMORY | PORTS |
|---|---|---|---|
| ECX700- ADP2040A-i5 | Intel® Core™ i5-1245UE | 8GB 256GB SSD | 4 USB 3.2, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, IP67 M12 4pin DC cable , IP67 COM+ CAN cable, M12 Lan cable |
| ECX700- ADP2040A-i7 | Intel® Core™ i7-1265UE | 8GB 256GB SSD | 4 USB 3.2, 2 LAN, 1 HDMI, 2 COM + 2 CAN bus, WIFI+BT, LTE, 1 IP67 M12 4pin DC cable, IP67 M12 4pin DC cable , IP67 COM+ CAN cable, M12 Lan cable |
