APPLICATION

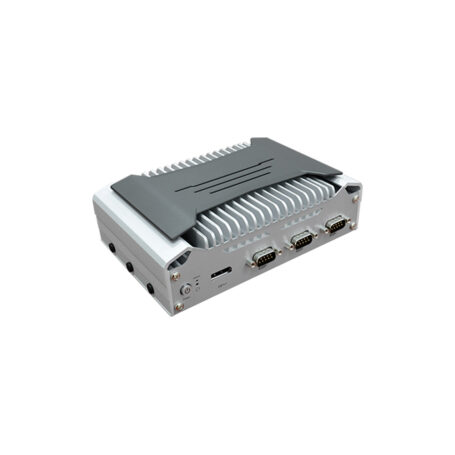

The EC70A-ADP is a compact, fanless embedded system powered by 12th Gen Intel® Core™ processors (Alder Lake-P). Engineered for robust industrial use, it operates reliably in temperatures ranging from -20°C to 60°C in fanless mode and up to 70°C with an optional fan. With onboard 8GB memory and support for additional DDR4 RAM, it delivers powerful performance for edge computing and IoT applications.
Featuring dual-display support with HDMI and DP, it supports 4K resolutions, while versatile I/O options include up to 3 LAN ports, 4 USB 3.2 (or 2 USB Type-A and 2 Type-C), and 4 COM ports. Expandable M.2 slots provide support for 5G, Wi-Fi, and NVMe storage. Its rugged aluminum and metal construction, wide power input range (9–36V), and flexible mounting options ensure durability and adaptability in industrial environments.
Certified with CE, FCC, RoHS, and UKCA standards, the EC70A-ADP is ideal for industrial automation, smart transportation, and edge AI solutions.
feature list
Powered by 12th Gen Intel® Core™ processors (Alder Lake-P)
Fanless operation with TDP 15W and optional fan with TDP 28W
Dual-display support with HDMI and DP, supporting 4K resolution
Onboard 8GB memory with expandable DDR4 SO-DIMM up to 32GB
Supports 5G connectivity with M.2 B key and SIM slot
Rich I/O including up to 3 LAN ports, 4 USB (or 2 USB Type-A and 2 Type-C), and 4 COM ports
Wide operating temperature range from -20°C to 60°C (fanless) or 70°C (with fan)
Expandable with M.2 slots for Wi-Fi, LTE/5G, and NVMe storage
Rugged aluminium and metal construction with wall, VESA, or DIN rail mounting
Certified with CE, FCC, RoHS, and UKCA standards
| MODEL NUMBER | CPU | MEMORY | PORTS |
|---|---|---|---|
| EC70A-ADP4043-i315UE8 | Intel® Core™ i3-1215UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4043-i545UE8 | Intel® Core™ i5-1245UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4043-i765UE8 | Intel® Core™ i7-1265UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4043F-i765UE8 | Intel® Core™ i7-1265UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4022TC3-i315UE8 | Intel® Core™ i3-1215UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4022TC3-i545UE8 | Intel® Core™ i5-1245UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4022TC3-i765UE8 | Intel® Core™ i7-1265UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
| EC70A-ADP4022TC3F-i765UE8 | Intel® Core™ i7-1265UE | 8GB | 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS |
