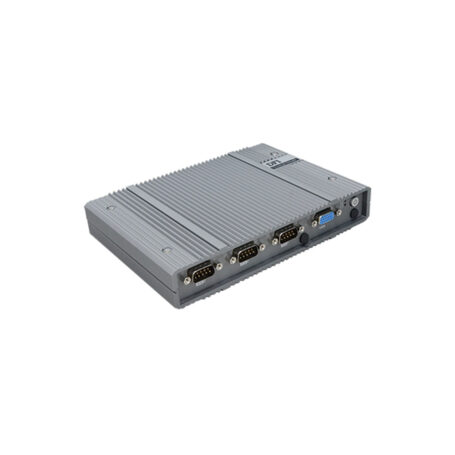

EC700-ADN

Processor: Intel® Processor N-series/Atom® Processor X Series
Memory: Up to 8GB
Form Factor: Compact Industrial Computer
Supports: Display Port, HDMI, USB, VGA
Size: 180 x 33 x 127.8mm
Operating Temperature -5°C to +60°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

The EC700-ADN and EC710-ADN are slim, fanless embedded systems powered by Intel® Alder Lake-N processors, offering advanced performance in a compact design. These systems support up to quad displays through HDMI, USB-C, and VGA, making them ideal for multitasking in industrial and IoT environments. Both models feature onboard LPDDR5 memory, integrated eMMC storage, and robust I/O configurations, including multiple USB 3.2, COM ports, and Ethernet with TSN and Intel TCC support.

EC700-ADN and EC710-ADN Designed for versatility, they operate reliably in temperatures from -5°C to 60°C and offer multiple mounting options, including wall, VESA, and DIN rail. With built-in Out-of-Band (OOB) management for hardware monitoring and remote recovery, these systems ensure easy maintenance and high availability. Certified with CE, FCC, RoHS, and UKCA, they are perfect for automation, digital signage, and edge computing applications.

feature list

Slim fanless design suitable
Powered by Intel® Alder Lake-N processors
Supports up to quad displays via HDMI, USB-C, and VGA
Onboard LPDDR5 memory and integrated eMMC storage
Out-of-Band (OOB) management enabling remote monitoring and recovery
Wide operating temperature range from -5°C to 60°C
Rich I/O with USB 3.2, COM ports, and 2.5GbE Ethernet with TSN support
Supports Intel TCC and TSN standards for real-time communication
Multiple mounting options including wall, VESA, and DIN rail
Certified with CE, FCC, RoHS, and UKCA

MODEL NUMBER	CPU	MEMORY	PORTS
EC700-ADN	Intel® Atom® X7211E	8GB	I/O( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
EC710-ADN	Intel® Atom® X7425E	16GB	I/O( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
EC700-ADN	Intel® Processor N97	4GB	I/O(4 USB-A, 2 2.5GbE + 1 1GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO), Display( 1 HDMI, 1 VGA), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
