APPLICATION

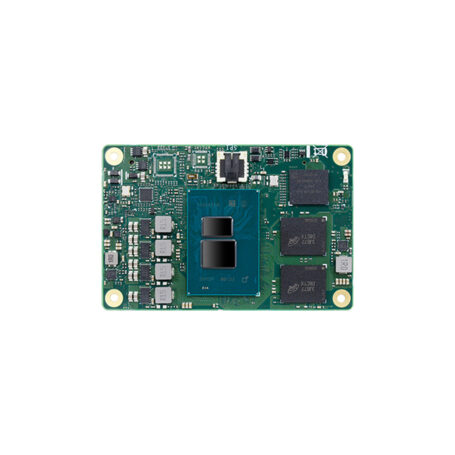

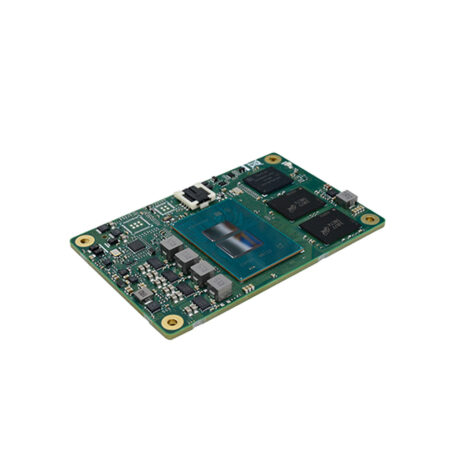

The ASL9A2 is a COM Express® Mini module powered by Intel® Atom® Amston Lake processors, designed for compact, low-power computing applications. Offering processor options with up to 8 cores, TDPs as low as 6W, and support for LPDDR5 memory up to 16GB, the ASL9A2 provides excellent performance and energy efficiency. It supports 4K dual displays via DP++ and LVDS/eDP, making it ideal for multimedia and industrial systems requiring high-resolution graphics.
With versatile I/O, including 2 USB 3.2 ports, 8 USB 2.0 ports, 4 PCIe x1 lanes, and a 2.5GbE Ethernet interface, the ASL9A2 ensures robust connectivity. Its wide input voltage range (4.75–20V), extended operating temperature (-40°C to 85°C), and compliance with CE and FCC standards make it ideal for use in Medical Computing, Industrial Automation, and In-Vehicle Systems where reliability in harsh environments is crucial.
feature list
Intel® Atom® x7000RE series processors with TDP ranging from 6W to 12W
LPDDR5-4800MHz memory up to 16GB with in-band ECC support
Dual display support: DDI and LVDS/eDP with resolutions up to 4K
Rich I/O: 2 x USB 3.2 Gen2, 8 x USB 2.0, 2 x SATA 3.0
High-speed Ethernet: 1 x Intel® I226-IT/LM supporting 10/100/1000Mbps and 2.5Gbps
Multiple expansion options: 4 x PCIe x1, 1 x SMBus, 1 x I2C, 1 x LPC
Built-in eMMC storage options up to 128GB (optional)
Wide operating temperature range: -40°C to 85°C
Compact COM Express® Mini form factor compliant with PICMG COM Express® R3.1, Type 10
Certified for CE and FCC standards
