APPLICATION

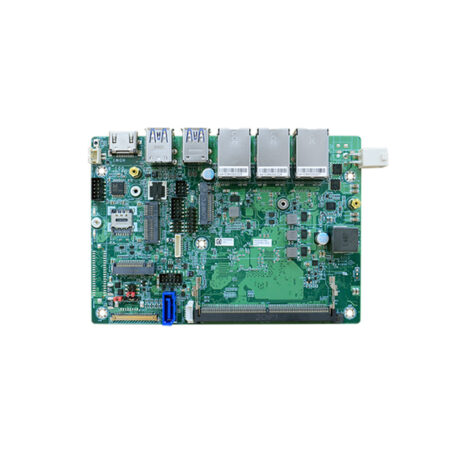

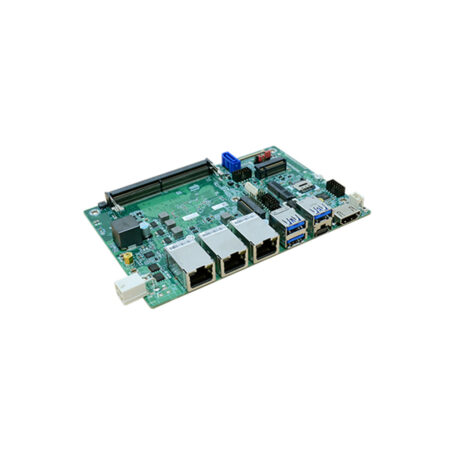

The ASL553 is a 3.5-inch single-board computer (SBC) powered by Intel® Atom® Amston Lake processors, designed for industrial and embedded applications. It supports up to 16GB of DDR5-4800MHz memory and delivers exceptional performance with low power consumption. With triple-display support, versatile expansion options including three M.2 slots, and rich I/O connectivity, the ASL553 is ideal for demanding use cases requiring robust and compact computing solutions.
feature list
Up to 8 cores with speeds reaching 3.6GHz and TDP as low as 6W
Single DDR5 SO-DIMM slot supporting up to 16GB at 4800MT/s
HDMI (4K @24Hz), Type-C DP Alt Mode (4K @60Hz), and LVDS/eDP (optional)

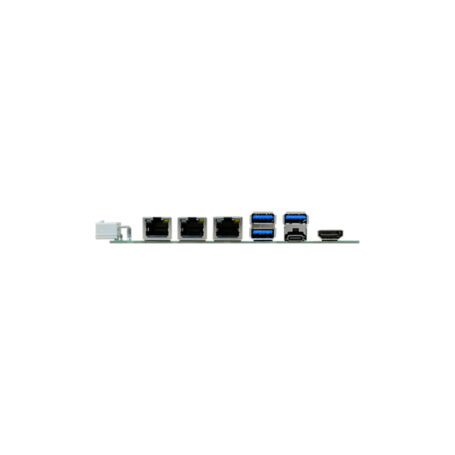

Includes three 2.5GbE LAN ports, four USB 3.2 ports, and two USB 2.0 ports
Features M.2 M key for storage, M.2 B key for 5G/LTE, and M.2 E key
3.5-inch SBC form factor with operating temperatures of -40°C to 85°C
Operates on 9–36V DC, suitable
Intel® UHD Graphics with support for HEVC, VP9, and AV1 hardware acceleration
Equipped with dTPM 2.0
SATA 3.0 with 6Gbps transfer speed and SATA power support
| MODEL NUMBER | CPU | MEMORY | OPERATING TEMPERATURE | PORTS |
|---|---|---|---|---|
| ASL553-TN-x7211RE | Intel® Atom Processor x7211RE | 1 DDR5 SODIMM | -40°C ~ 85°C | HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0 |
| ASL553-TN-x7213RE | Intel® Atom Processor x7213RE | 1 DDR5 SODIMM | -40°C ~ 85°C | HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0 |
| ASL553-TN-x7433RE | Intel® Atom Processor x7433RE | 1 DDR5 SODIMM | -40°C ~ 85°C | HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0 |
| ASL553-TN-x7835RE | Intel® Atom Processor x7835RE | 1 DDR5 SODIMM | -40°C ~ 85°C | HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0 |
