APPLICATION

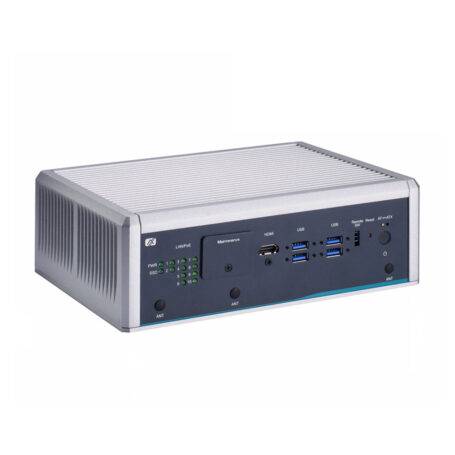

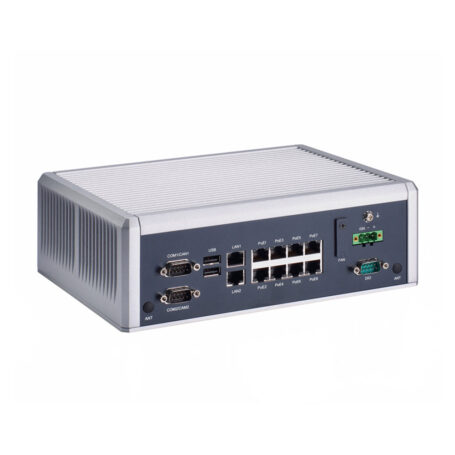

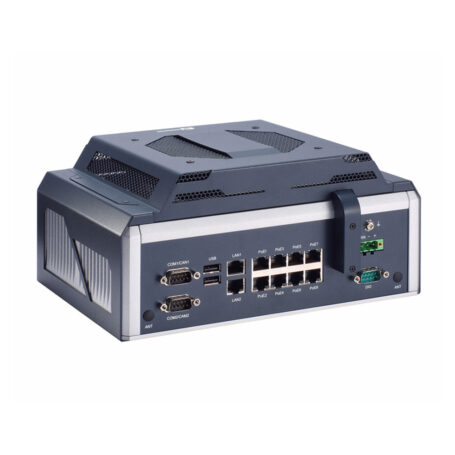

The AIE900A-AO Fanless Edge AI System is powered by the NVIDIA® Jetson AGX Orin™, delivering up to 275 TOPS for advanced AI at the edge. Designed for 5G, robotics, and intelligent systems, it features 2 2.5GbE ports, 8 PoE, 6 USB, HDMI 2.1, and dual COM/CAN interfaces. With wide 9–36VDC input, ignition control, and a rugged fanless design, it supports reliable operation in harsh environments from -25°C to +60°C.
The system offers flexible storage with onboard 64GB eMMC, NVMe via M.2, and microSD. It supports high-speed wireless and camera integration through 5G, Wi-Fi 6E, and optional GMSL. Certified for CE, FCC, and UKCA, it’s ideal for smart cities, industrial robotics, and edge AI deployments where performance, connectivity, and durability are critical.
feature list
NVIDIA® Jetson AGX Orin™ with up to 275 TOPS AI performance
Seamless 5G, Wi-Fi 6E, and 2.5GbE connectivity
8 PoE ports supporting up to 60W total power for camera and LiDAR
Wide 9 to 36VDC input range with ignition power control and E-Mark compliance
Fanless design with -25°C to +60°C operating temperature range
Robust I/O including 6 USB ports, 2 COM/CAN, HDMI 2.1, and 8-CH DI/DO
Multiple expansion interfaces including M.2 slots for 5G, Wi-Fi 6, and NVMe SSD
64GB eMMC onboard storage with additional Micro SD and M.2 NVMe options
Vibration and shock resistance
Optional OTA deployment and device management powered by Allxon
