APPLICATION

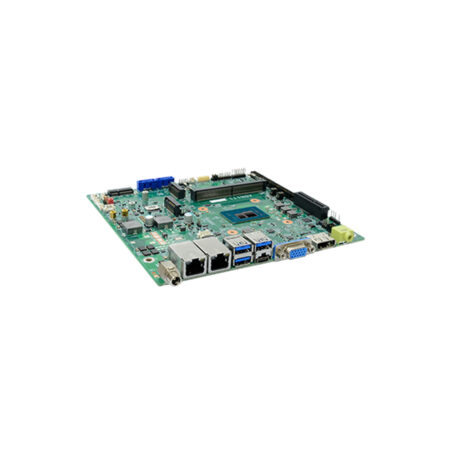

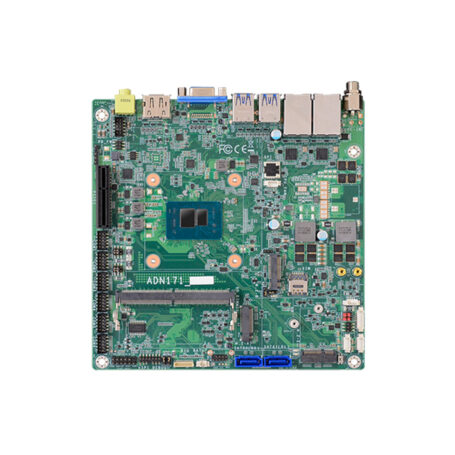

The ADN171/ADN173 are compact and efficient embedded systems powered by Intel® Atom® and Alder Lake-N processors, with TDPs of up to 15W. Offering up to 16GB of DDR5 memory, these systems are designed for energy-efficient performance in industrial and IoT applications. The ADN171 operates with a 12V power supply, while the ADN173 supports a wide voltage range of 9–36V, enhancing deployment flexibility.

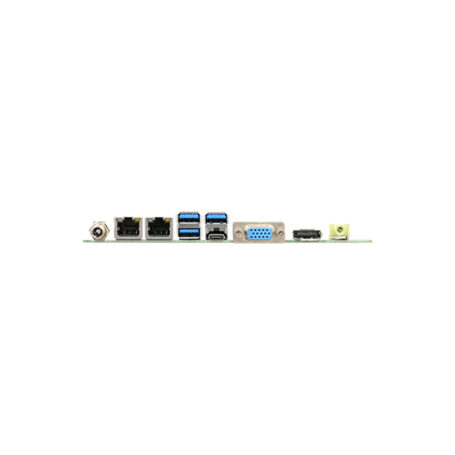

Both models provide triple-display support through DP++, HDMI, VGA, or USB Type-C with resolutions up to 4K. Expansion capabilities include PCIe x4, multiple M.2 slots for storage or wireless modules, and nano SIM support. Rich I/O options feature dual 2.5GbE LAN ports, multiple COM and USB ports, and optional audio connectivity. With robust design features and compatibility with Windows and Linux, the ADN171/ADN173 are ideal for industrial automation, digital signage, and edge computing.
feature list
Supports Intel® Atom® and Alder Lake-N processors with up to 15W TDP
Up to 16GB DDR5 memory with single-channel 4800MHz support
Triple-display capability with DP++, HDMI, VGA, and USB Type-C (4K resolution)
Dual 2.5GbE LAN ports
Rich I/O with multiple USB 3.2 Gen2, USB 2.0, and COM ports
Expansion options with PCIe x4, M.2 B Key, M.2 E Key, and M.2 A Key slots
Wide voltage power input: 12V for ADN171, 9–36V for ADN173
Compact fanless design
Supports TPM 2.0
Compatible with Windows 10 IoT, Windows 11, and Linux operating systems
| MODEL NUMBER | CPU | MEMORY | PORTS |
|---|---|---|---|
| ADN171-CB-x7213E | Intel® Atom® x7213E | 1 DDR5 | Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC Jack, Fanless, |
| ADN171-CB-N200 | Intel® Processor N200 | 1 DDR5 | Rear I/O(1 DP++, 1 HDMI, 2 LAN, 4 USB 3.2 Gen2), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC Jack, Fanless |
| ADN171-CB-N50 | Intel® Processor N50 | 1 DDR5 | Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC Jack, Fanless |
| ADN171-CB-N97 | Intel® Processor N97 | 1 DDR5 | Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC Jack, Fanless |
| ADN171-CB-i3-N305 | Intel® Atom® i3-N305 | 1 DDR5 | Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC Jack, Fanless |
| ADN173-CB-x7213E | Intel® Atom® x7213E | 1 DDR5 | Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC Jack, Fanless |
| ADN173-CB-N50 | Intel® Processor N50 | 1 DDR5 | Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC Jack, Fanless |
| ADN173-CB-x7425E | Intel® Atom® x7425E | 1 DDR5 | Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC Jack, Fanless |
| ADN173-CB-N97 | Intel® Processor N97 | 1 DDR5 | Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC Jack, Fanless |
| ADN173-CB-i3-N305 | Intel® Processor N305 | 1 DDR5 | Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC Jack, Fanless |
