A New Wave of EN60945 Compliant Monitors

A New Wave of EN60945 Compliant Monitors

The marine displays, manufactured by panel PC and industrial monitor specialist, Elgens, are certified to IEC60945 for marine applications. The wide variety available from Relec includes panel PCS, monitors and discrete TFT displays for maritime installations, such as pilot control panels, sonar systems, engine room monitors and passenger information systems in commercial vessels.

Environmentally Friendly

As part of Elgens’ commitment to the environment, all products are RoHS- and REACH-compliant. The manufacturer is also able to supply declarations against the use of conflict materials.

The marine range has module sizes ranging from 10.1” to 23.8”. The high quality displays have an operating temperature range covering -40°C to +80°C. Other key features are high shock and vibration immunity. They are also offered as rugged PCAP touch panels with excellent EMI/EMC performance.

Sealed enclosed monitors

Options available include IPS, HDMI and touch panel displays. Relec’s fully-trained technical staff can help customers with options for film to reduce glare or to improve viewing angles up to 90° using IPS panels. Optical bonding is another option which improves sunlight readability, whilst also minimising trapped moisture and reducing the effects of fog in the display, enhancing visibility. For other applications, there are anti-fingerprint treatments which reduce marking when handling the display.

The panels can be ruggedised with the addition of thicker glass panels and customised with the addition, logos or custom graphics can be applied on the glass.

We consider ourselves experts in display technology. We have worked closely with our key suppliers for over 40 years. We specialise in many industries, including; automotive, industrial, transportation, instrumentation & defence. We have a team of dedicated engineers ready to support you throughout the design process. We also carry stock of all standard modules and accessories for next day delivery.

EN60945 Approved Monitors
from Elgens

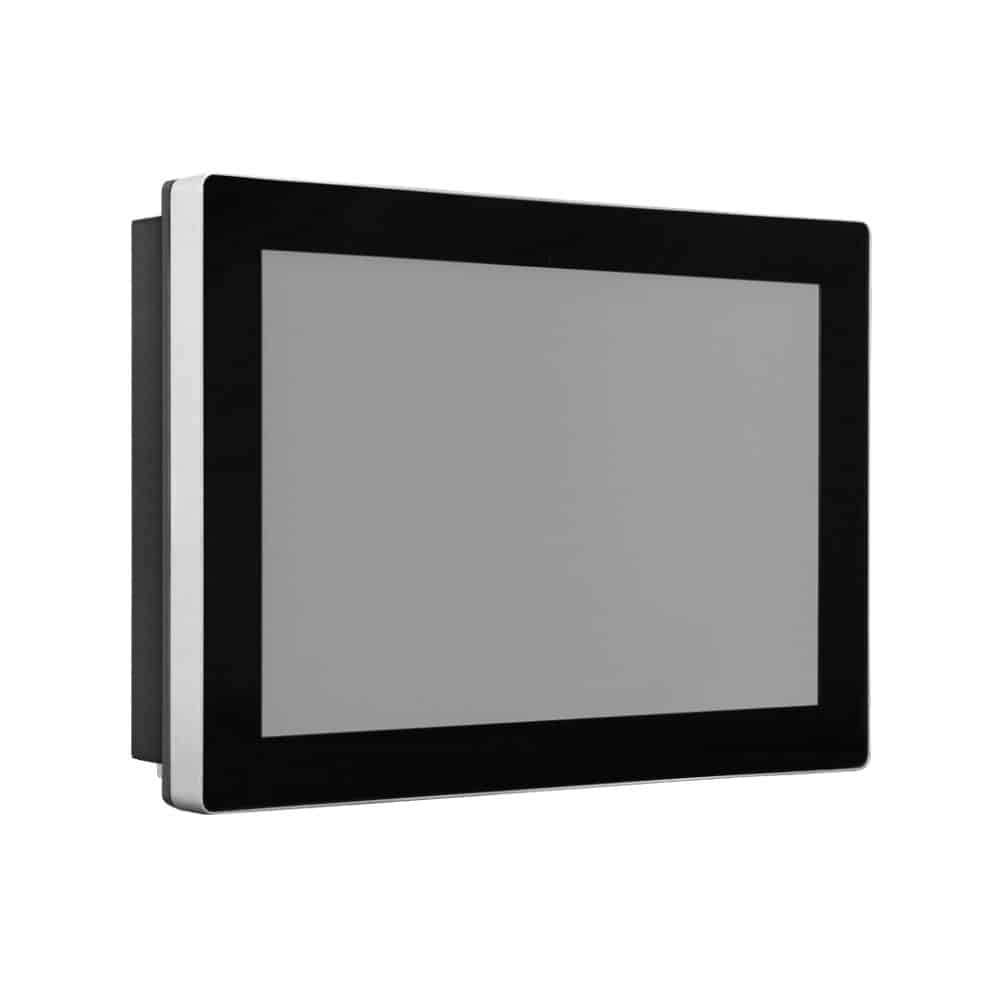

10.1 inch EN60945 Approved Monitor

Screen Size: 10.1 Inch (wXGA)
Aspect Ratio: 16:9 Resolution: 1280(W) x 800(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

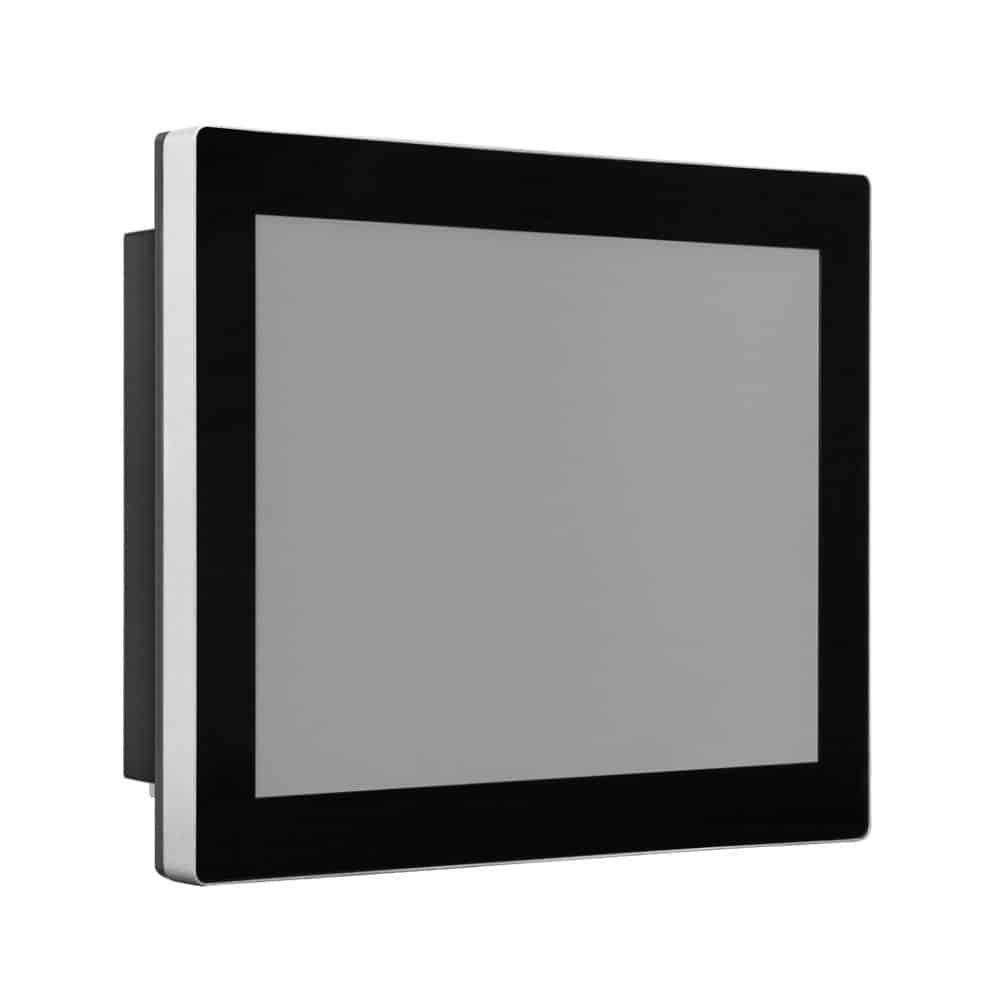

10.4 inch EN60945 Approved Monitor

Screen Size: 10.4Inch (XGA)
Aspect Ratio: 4:3 Resolution: 1024(W) x 768(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

15 inch EN60945 Approved Monitor

Screen Size: 15 Inch (XGA)
Aspect Ratio: 4:3 Resolution: 1024(W) x 768(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

15.6 inch EN60945 Approved Monitor

Screen Size: 15.6 Inch (FHD)
Aspect Ratio: 16:9 Resolution: 1920(W) x 1080(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

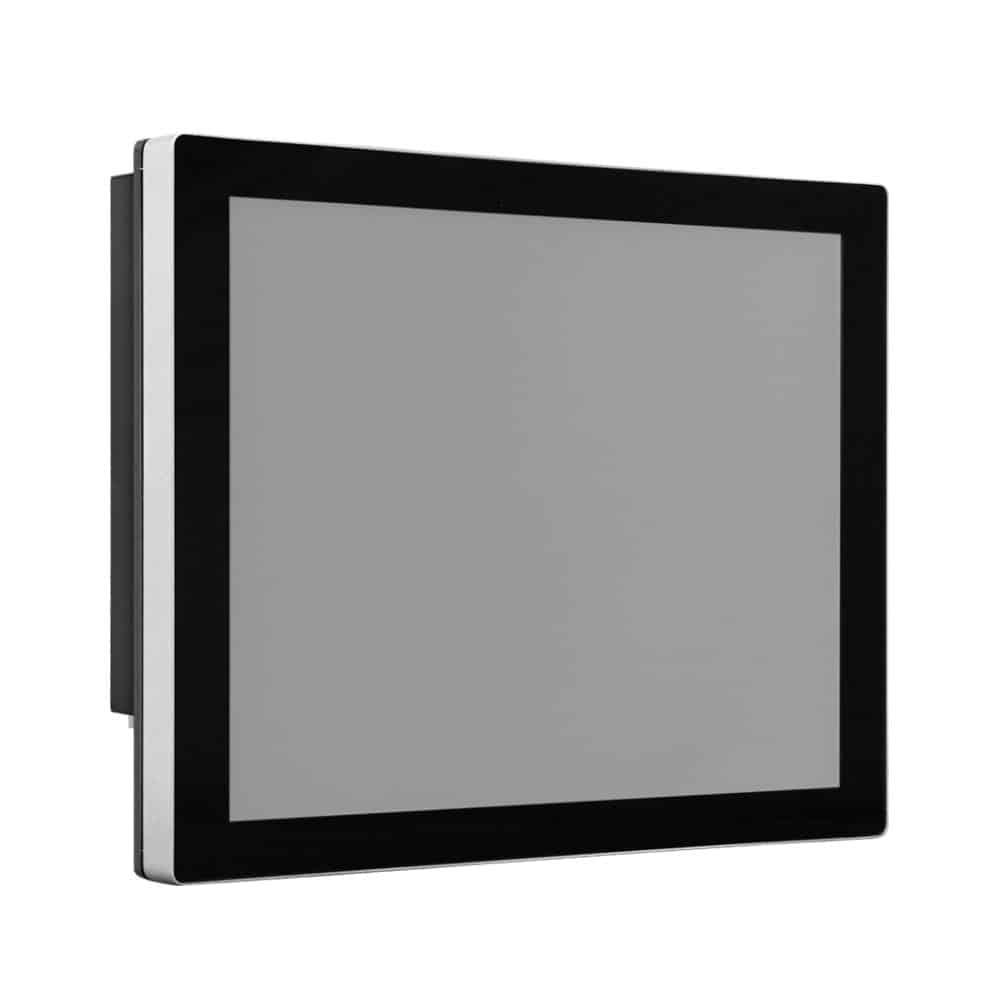

17 inch EN60945 Approved Monitor

Screen Size: 17 Inch (SXGA)
Aspect Ratio: 5:4 Resolution: 1280(W) x 1024(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

19 inch EN60945 Approved Monitor

Screen Size: 19 Inch (SXGA)
Aspect Ratio: 5:4 Resolution: 1280(W) x 1024(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

21.5 inch EN60945 Approved Monitor

Screen Size: 21.5 Inch (FHD)
Aspect Ratio: 16:9 Resolution: 1920(W) x 1080(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info

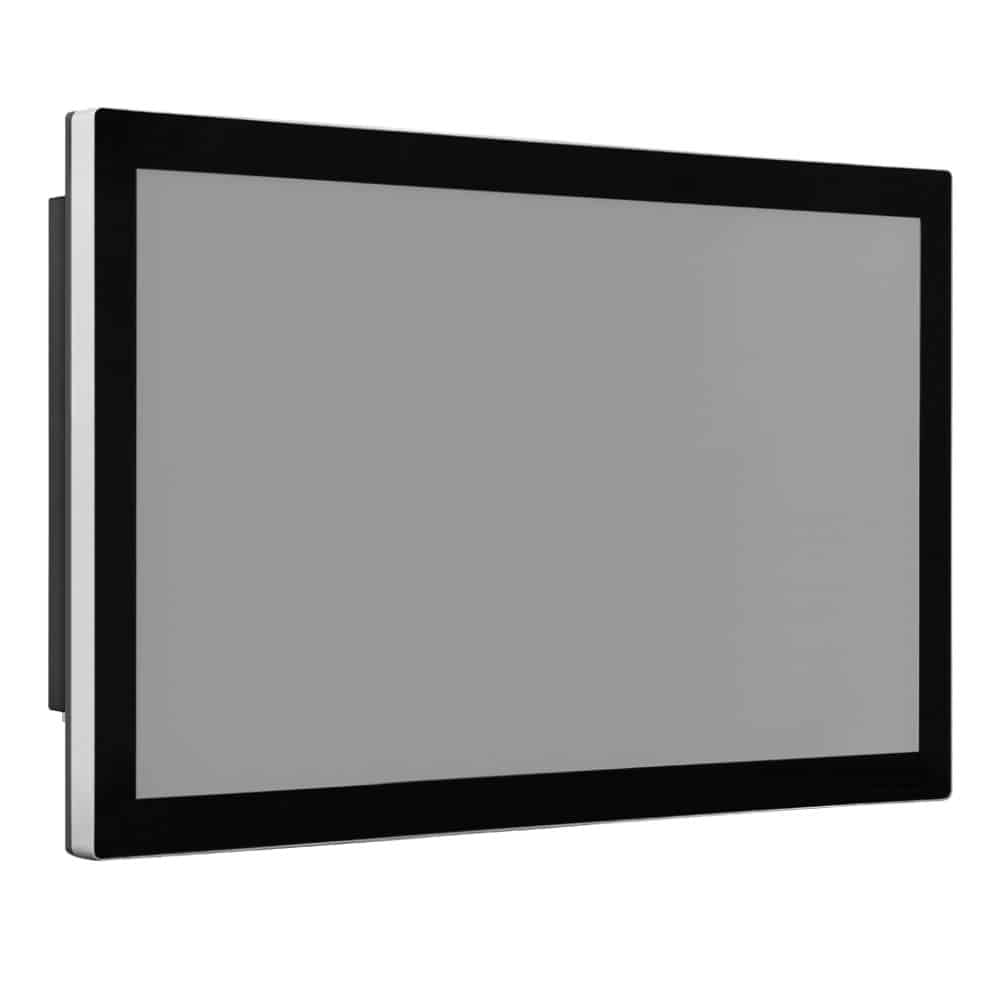

24 inch EN60945 Approved Monitor

Screen Size: 24 Inch (FHD)
Aspect Ratio: 16:9 Resolution: 1920(W) x 1080(H) RGB pixels
Temperature range: -40 to +80°C

---

Click Here for Info
