50155 Compliant Monitors help Realise the Future of Transportation

EN50155 Compliant Monitors help Realise the Future of Transportation

Artificial intelligence (AI) and the Internet of Things (IoT) are technologies increasingly being adopted within the railway industry. In this article we explain how approved EN50155 compliant monitors can be simply and cost-effectively integrated into system design to enhance rail travel.

New Technologies

While train operation is almost semi-automatic, the human element in the form of a driver is still needed to oversee safe and reliable operation. Drivers are isolated in their cabs, so AI at the edge (of the network) can detect any incidents, like an acute medical condition. Onboard surveillance can monitor activity, for example if the driver falls to the ground or stares in one direction for more than five seconds, an alarm will be activated to alert the control centre who may decide to initiate emergency procedures. Outside of the driver’s cab, the same surveillance system can monitor passenger numbers and behaviour and alert the driver or a central control.

Networked cameras and AI software can detect when passengers are seated or alighting from the train to provide real-time status data for accurate updates of capacity. Displays in each carriage can depict which have free seats so passengers can easily move along the train to find a seat. The IoT means that the occupancy status can also be displayed on passengers’ phones for active updates.

Sealed enclosed monitors

A range of Axiomtek’s EN 50155-certified touchscreen railway monitors are available from Relec Electronics. The latest model to be added to the offering of railway approved monitors is the P710.
This 10.4” XGA TFT monitor has an active area of 210.4 x 157.8mm, high resolution of 1024 x 768 and includes a five-wire resistive touch panel. The versatile monitor has a choice of interfaces (VGA, DVI and HDMI) and is enclosed in an aluminium casing. This is rated IP65 at the front and supports VESA or panel mounting options. The P710 offers 500 cd/m2 brightness, 16.2M colours and wide viewing angles. It is certified to EN50155 and EN45545. Input range is 24 Vdc to 110 Vdc and the operating temperature is -25 to +55°C.

We consider ourselves experts in display technology. We have worked closely with our key suppliers for over 40 years. We specialise in many industries, including; automotive, industrial, transportation, instrumentation & defence. We have a team of dedicated engineers ready to support you throughout the design process. We also carry stock of all standard modules and accessories for next day delivery.

EN50155 Approved Monitors
from Axiomtek

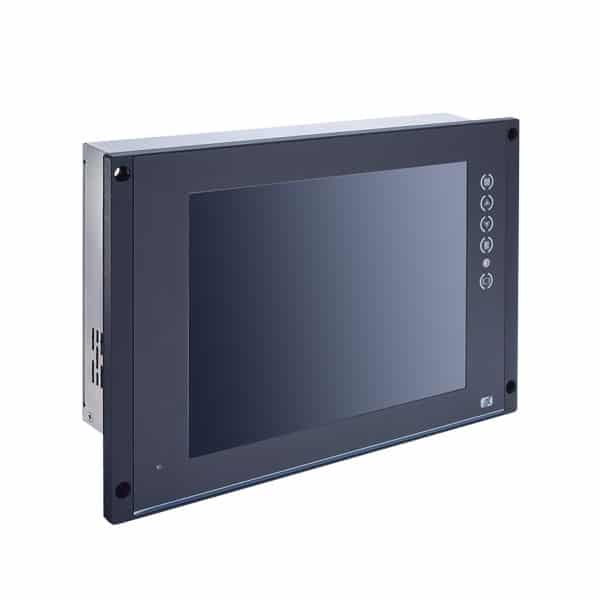

10.4 inch Railway Approved Monitor

Screen Size: 10.4 Inch (XGA)
Aspect Ratio: 16:9 Resolution: 1024(W) x 768(H) RGB pixels
Interface: VGA, DVI or HDMI
Active Area: 210.4(W) x 157.8(H) mm

---

Click Here for Info

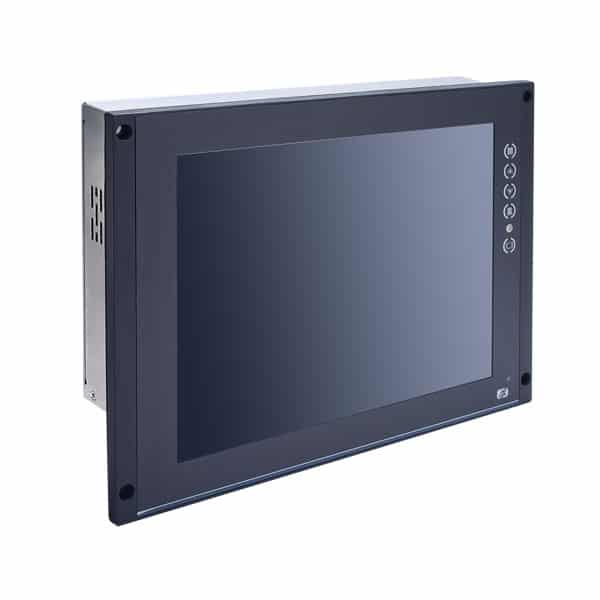

12.1 inch Railway Approved Monitor

Screen Size: 12.1 Inch (XGA)
Aspect Ratio: 16:9 Resolution: 1024(W) x 768(H) RGB pixels
Interface: VGA, DVI or HDMI
Active Area: 245.8(W) x 184.3(H) mm

---

Click Here for Info
