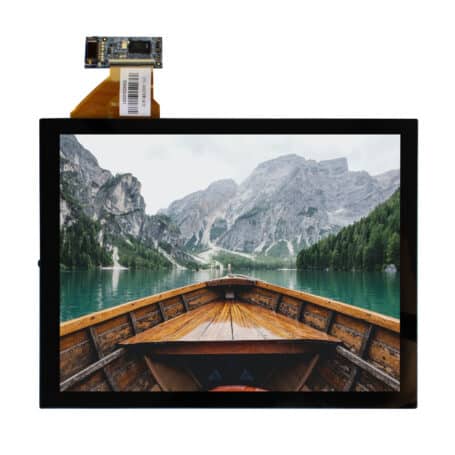

8” XGA IPS TFT LCD Display

Screen Size: 8″
Aspect Ratio: 4:3
Active Area: 162.0(W) x 121.5(H) mm
Resolution: 1024 x 768
Interface: 8-bit LVDS
Brightness: 500cd/m2 – 1200cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C

Make an enquiry

Make an Enquiry

Product
First Name*
Last Name*
Email*
Company
Phone
City
Country*
Enquiry*
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

have a question? Contact us now

01929 555 700
sales@relec.co.uk

APPLICATION

RELEC’s 8″ XGA IPS TFT LCD Display range all incorporate a low power backlight design, whilst maintaining brightness level of up to 1200 cd/m2 and industrial grade operating temperatures of -20°C to +70°C. These units all use IPS technology for complete viewing angles.

The 8” TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications.

Further modifications are available on these 8″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.

For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.

Options – customise your display

feature list

Brightness options from 500 to 1200cd/m2
IPS Full Viewing Angles
Resolution of 1024 x 768
Low Power Consumption
16.7m colours
8-bit LVDS Interface
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 800
LED Life time: 40,000 hours

MODEL NUMBER	INTERFACE	BRIGHTNESS (CD/M2)	OPERATING TEMP (°C)	TOUCH
13-080GIEBIAA1-S	8-bit LVDS	500	-20 to +70	PCAP
13-080GIEBUAA1-S	8-bit LVDS	500	-20 to +70	PCAP
13-080GIEB00A1-S	8-bit LVDS	600	-20 to +70	None
13-080GIEB4RB0-S	8-bit LVDS	1000	-20 to +70	Resistive
13-080GIEB00A0-S	8-bit LVDS	1200	-20 to +70	None
13-080GIEBUBA0-S	8-bit LVDS	1200	-20 to +70	PCAP
