APPLICATION

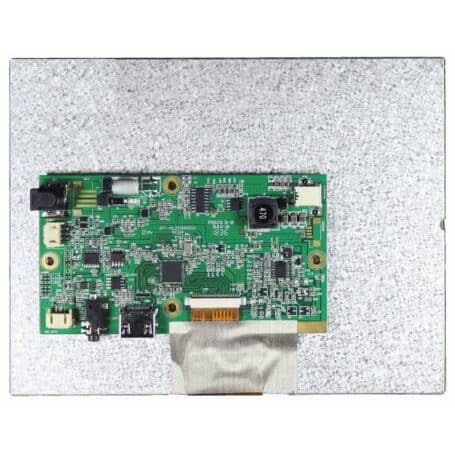

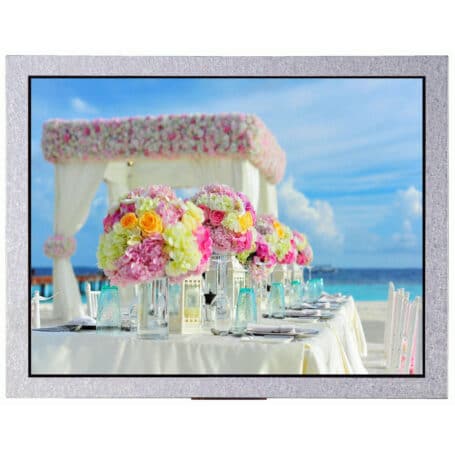

The 8″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID
RELEC’s 8″ HDMI TFT LCD Display range all incorporate a low power backlight design, whilst maintaining brightness level of up to 1200 cd/m2 and industrial grade operating temperatures of -20°C to +70°C. These units all use IPS technology for complete viewing angles.
The 8” HDMI TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor application such as medical, industrial, marine and defence applications.
Further modifications are available on these 8″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
 |  |  |
 |  |  |
feature list
Brightness options from 500 to 1200cd/m2
IPS Full Viewing Angles
Resolution of 1024 x 768
Low Power Consumption
16.7m colours
HDMI Input
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 12 Vdc
Contrast Ratio: 800
LED Life time: 40,000 hours
| MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
|---|---|---|---|---|
| HA-080GIEB4HD0-V | HDMI | 480 | -20 to +70 | Resistive |
| HA-080GIEBUAD0-V | HDMI | 500 | -20 to +70 | PCAP |
| HA-080GIEBUBD0-V | HDMI | 500 | -20 to +70 | PCAP |
| HA-080GIEB0HD0-V | HDMI | 600 | -20 to +70 | None |
| HA-080GIEB4HA0-V | HDMI | 1000 | -20 to +70 | Resistive |
| HA-080GIEBUAA0-V | HDMI | 1100 | -20 to +70 | PCAP |
| HA-080GIEBUCA0-V | HDMI | 1100 | -20 to +70 | PCAP |
| HA-080GIEBUBA0-V | HDMI | 1100 | -20 to +70 | PCAP |
| HA-080GIEB00A0-V | HDMI | 1200 | -20 to +70 | None |
