APPLICATION

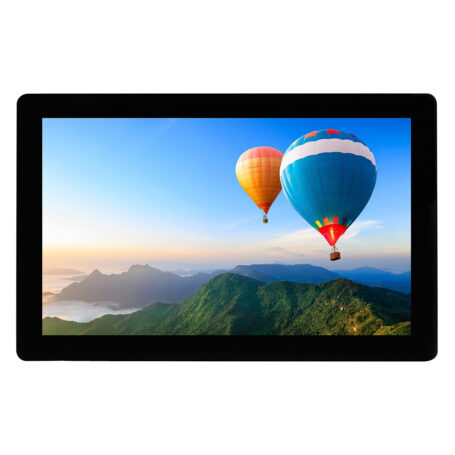

Discover the 7” USB-C Display, a sophisticated display designed to enhance visual engagement and productivity. This display is built with a colour active matrix TFT LCD, renowned for its sharp, clear visuals attributed to the WSVGA resolution of 1024 x 600 pixels. The inclusion of wide viewing angles ensures that the display offers consistently vibrant and precise images from any perspective, making it an ideal choice for diverse professional settings.
The 7” USB-C Display combines high functionality with streamlined usability, offering multiple benefits to enhance your operations. The single-cable solution not only simplifies connectivity with its capability for high-resolution support, the display excels in projects requiring high-end design precision. Furthermore, the integration of fast data transfer, reduced production assembly, lower noise levels, and overall cost reduction aligns perfectly with the needs of engineers.
The 7” USB-C Display enhances control panels in industrial settings, aiding precision in medical devices, and providing clarity in transportation systems. Its robust construction also makes it well-suited for the demanding conditions of military and marine applications.
Further modifications are available on these 7″ USB-C Displays, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
Options – customise your display
 |  |  |
 |  |  |
feature list
Brightness options from 600 to 700cd/m2
IPS Full Viewing Angles
Resolution of 1024 x 600
Low Power Consumption
16.7m colours
USB-C Input
Operating temperature range 0°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 5 Vdc
Contrast Ratio: 600
LED Life time: 50,000 hours
| MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
|---|---|---|---|---|
| UC-070XIEB0GW1-S | USB-C | 700 | 0 to +70 | None |
| UC-070XIEBCNW1-S | USB-C | 600 | 0 to +70 | PCAP |
| UC-070XIEBCBW1-S | USB-C | 600 | 0 to +70 | PCAP |
