APPLICATION

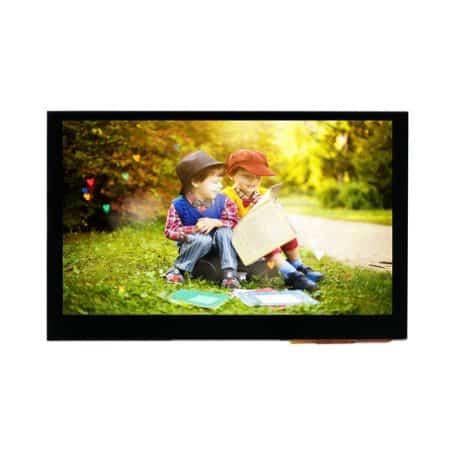

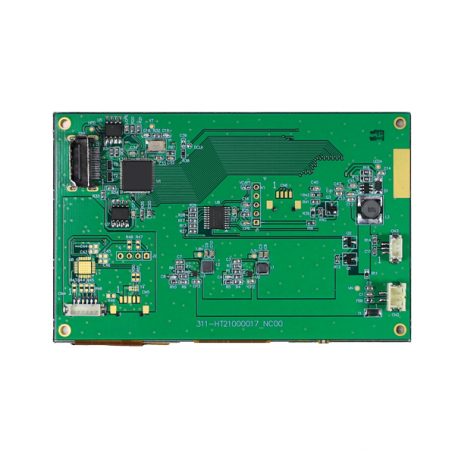

The 4.3″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.
The small size and high resolution on these 4.3” HDMI TFT LCD Displays provide an outstanding picture quality. Along with the high brightness and wide operating temperature options, means this unit is the perfect solution for harsh environments where displayed information is mission critical.
Further modifications are available on these 4.3″ HDMI TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
feature list
Brightness options from 450 to 1100cd/m2
IPS Full Viewing Angles
Resolution of 800 x 480
Low Power Consumption
16.2m colours
HDMI
Operating temperature range -30°C to +70°C
Storage temperature range -30°C to +80°C
Module Supply Voltage: 5 Vdc
Contrast Ratio: 800
LED Life time: 50,000 hours
MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
---|---|---|---|---|
HU-043WISBUAA0-B | HDMI | 450 | -30 to +80 | PCAP |
HB-043WISB0GA0-B | HDMI | 500 | -30 to +80 | None |
HB-043WISB4GA1-B | HDMI | 900 | -30 to +80 | Resistive |
HU-043WISBUAA1-B | HDMI | 1000 | -30 to +80 | PCAP |
HB-043WISB0GA1-B | HDMI | 1100 | -30 to +80 | None |
