APPLICATION

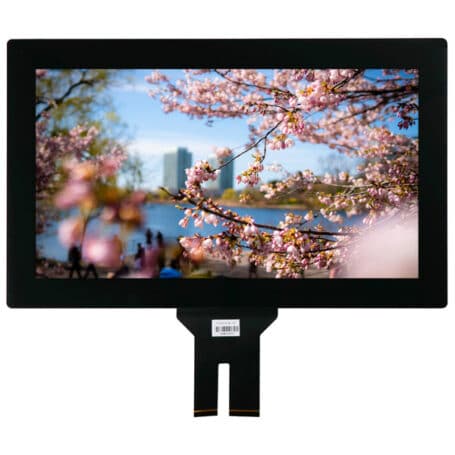

The 18.5″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.
This Display range features high brightness levels of up to 1000cd/m2, high contrast ratios and full viewing angle with its IPS technology.
The 18.5” HDMI TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for a variety of applications such as medical, industrial, marine and defence applications. The high brightness, long LED life time and very wide operating temperature make it an ideal option for harsh environments and mission critical applications.
Further modifications are available on these 18.5” TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
feature list
Brightness options from 850 to 1000cd/m2
IPS Full Viewing Angles
Resolution of 1920 x 1080
Low Power Consumption
16.7m colours
HDMI Input
Operating temperature range -20°C to +70°C
Storage temperature range -20°C to +70°C
Module Supply Voltage: 12 Vdc
Contrast Ratio: 1000
LED Life time: 50,000 hours
MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
---|---|---|---|---|
HA-185HIEB0GA2-V | HDMI | 1000 | -20 to +70 | None |
HA-185HIEBUAA2-V | HDMI | 850 | -20 to +70 | PCAP |
