APPLICATION

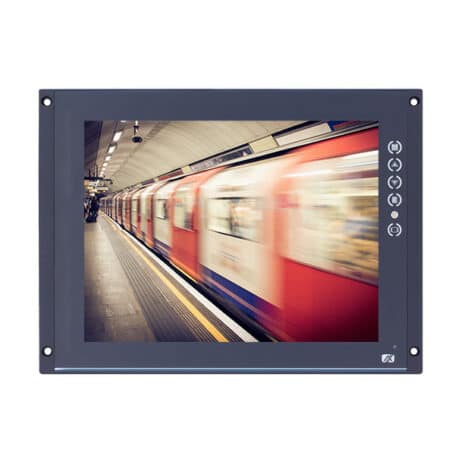

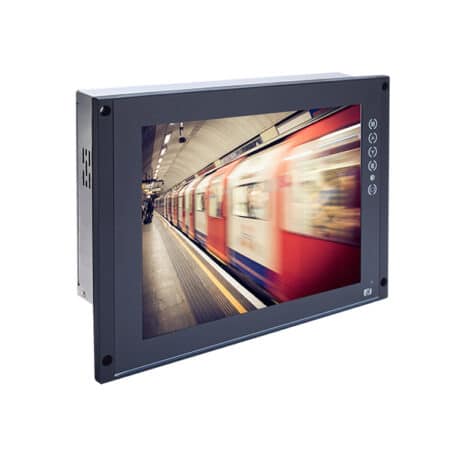

This 12.1″ railway approved monitor is fully enclosed and consists of a high brightness TFT with wide viewing angles. The TFT has a screen size of 12.1” diagonally measured with a 1024 by 768 resolution and includes a 5-wire resistive touch panel. This features various video inputs, including VGA, DVI & HDMI input and an auto-dimming brightness. This is enclosed in an aluminium casing with IP65 front rated, that supports both VESA and panel mounting and is certified to the requirements of EN50155 for railway applications.
Options – customise your display
 |  |  |
 |  |  |
Our expert technical team are on hand to guide you through the process of specifying the perfect TFT display solution. Call us today.
GET IN TOUCH TODAY – 01929 555700
Here at Relec Electronics, we have worked closely with our key suppliers for over 40 years. We specialise in many industries, including; automotive, industrial, transportation, instrumentation & defence. We have a team of dedicated engineers ready to support you throughout the design process. We also carry stock of all standard modules and accessories for next day delivery.
Let’s make this easy and call us today.
Follow us on Facebook, LinkedIn & Twitter for updates on all of the latest Power Conversion products.
Sign up to our monthly newsletter below, and never miss out on our updates of industry news, we release news/blog pages weekly with news from the power and display industries.
Relec Electronics holds the highest standards towards finding you the ideal solution for your application. We truly believe “Standard is Just the Beginning”. Get in touch with our technical team today.
feature list
High Contrast Ratio
Wide Viewing Angle
Resolution 1024 x 768 Pixels
600 cd/m2 High Brightness
16.2M Colours

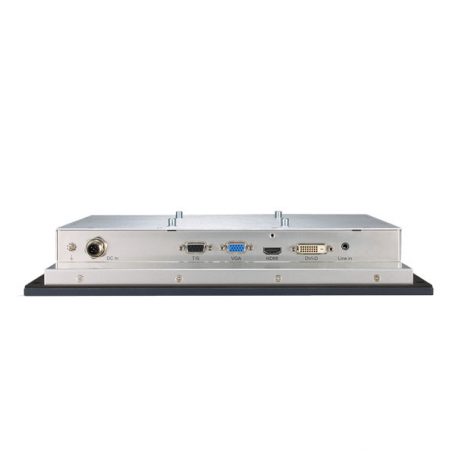

VGA, DVI & HDMI Input
5-wire Resistive Touch Panel
Operating temp of -25°C to +55°C
VESA Mount & panel Mount
24 Vdc to 110 Vdc input voltage
EN50155 and EN 45545 Certified
Front Bezel OSD Keys
Viewing direction: free direction
| MODEL NUMBER | RESOLUTION | TOUCH TYPE / INTERFACE | BRIGHTNESS (CD/M2) |
|---|---|---|---|
| P712 | 1024 x 768 RGB Pixels | 5-Wire Resistive | 600 |
| P6125 | 1024 x 768 RGB Pixels | 5-Wire Resistive | 600 |
