APPLICATION

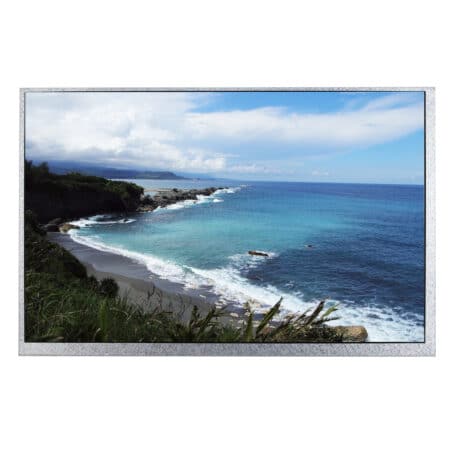

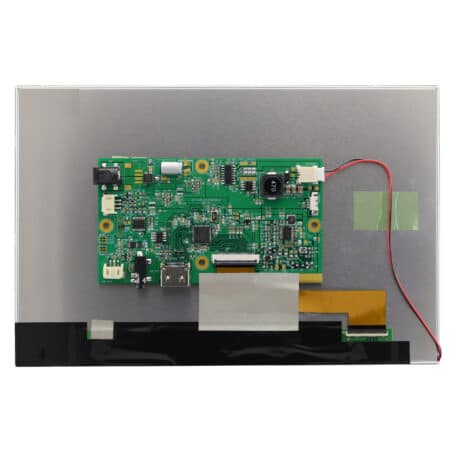

The 11.6″ HDMI TFT LCD Display provide a simple method to incorporate a display into equipment. The range all includes an integrated HDMI bridge, LED backlight driver and pre-installed EDID.
The 11.6” HDMI TFT LCD Display range features high brightness levels of up to 1500cd/m2, high contrast ratios, very high resolution relative to its size and full viewing angle with its IPS technology
The 11.6” HDMI TFT LCD Display range includes a wide variety of brightness options, which makes it suitable for any indoor or outdoor applications such as medical, industrial, marine and defence applications. The high brightness options make it suitable for use outdoors under direct sunlight. The high resolution on a relatively small size makes it an ideal solution for picture quality applications, such as medical imaging.
Further modifications are available on these 11.6″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
 |  |  |
 |  |  |
feature list
Brightness options from 900 to 1500cd/m2
IPS Full Viewing Angles
Resolution of 1920 x 1080
Low Power Consumption
16.7m colours
HDMI Input
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +85°C
Module Supply Voltage: 12 Vdc
Contrast Ratio: 1000
LED Life time: 50,000 hours
| MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
|---|---|---|---|---|
| HA-116HIPBCAB1-A | HDMI | 900 | -20 to +70 | PCAP |
| HA-116HIPB0GB1-A | HDMI | 1000 | -20 to +70 | None |
| HA-116HIPBCAB0-A | HDMI | 1300 | -20 to +70 | PCAP |
| HA-116HIPB0GB0-A | HDMI | 1500 | -20 to +70 | None |
