APPLICATION

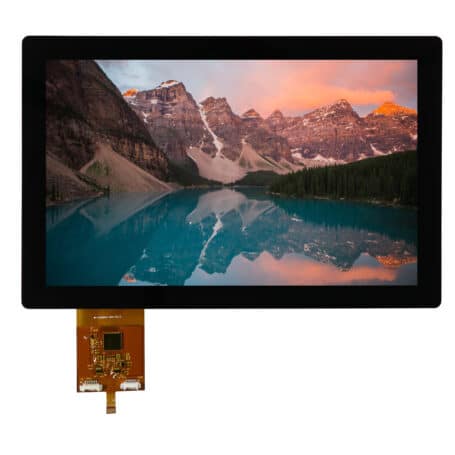

The 10.1″ WSVGA TFT LCD Display range all incorporates a low power backlight design, whilst maintaining a brightness level of up to 400 cd/m2. The operating temperature within this range are within industrial levels of -20°C to +70°C.
The 10.1” TFT LCD Display range is the ideal solution for any indoor application, such as commercial, medical and industrial applications.
Further modifications are available on these 10.1″ TFT LCD Display, to enhance the performance. Options include; Optical Bonding, Custom Cover Lens Design, Screen Enhancements, Mounting Frames, Adaptor Boards, Custom Cables and Enhancement Films.
For the Custom Cover Lens Design, this has a variety of options, including custom size, shape and design, apertures for other connections, thick and strengthened glass and custom printing.
Options – customise your display
 |  |  |
 |  |  |
feature list
Brightness options from 350 to 1000cd/m2
Resolution of 1024 x 600
Low Power Consumption
16.7m colours
TTL 24-bit RGB & 8-bit LVDS Interface
Operating temperature range -20°C to +70°C
Storage temperature range -30°C to +80°C
Viewing Direction: 12 o’clock
Module Supply Voltage: 3.3 Vdc
Contrast Ratio: 800
LED Life time: 30,000 hours
| MODEL NUMBER | INTERFACE | BRIGHTNESS (CD/M2) | OPERATING TEMP (°C) | TOUCH |
|---|---|---|---|---|
| FLD-101HMLC0PUFA3#01 | 8-bit LVDS | 350 | -20 to +70 | PCAP |
| FLC-101HMLC000SA1#00 | 8-bit LVDS | 350 | -20 to +70 | None |
| FLC-101QMMG000SA1#00 | MIPI | 450 | -10 to +50 | None |
| FLD-101HML20PCSA4#00 | 8-bit LVDS | 500 | -20 to +65 | PCAP |
| FLC-101HML2000SA1#00 | 8-bit LVDS | 500 | -20 to +65 | None |
| 13-101ZIEB4UD0-S | 8-bit LVDS | 560 | -20 to +70 | Resistive |
| 13-101ZIEBCBD0-S | 8-bit LVDS | 600 | -30 to +80 | PCAP |
| 13-101ZIEB0HD0-S | 8-bit LVDS | 700 | -30 to +80 | None |
| 13-101ZIEB4UD1-S | 8-bit LVDS | 1100 | -20 to +70 | Resistive |
| 13-101ZIEBCBD1-S | 8-bit LVDS | 1200 | -30 to +80 | PCAP |
| FLD-101HML00PCSA2#00 | 8-bit LVDS | 1200 | -30 to +80 | PCAP |
| FLD-101HML00PCSA1#01 | 8-bit LVDS | 1200 | -30 to +80 | PCAP |
| FLC-101HMLG200001#00 | 8-bit LVDS | 1200 | -30 to +80 | None |
| 13-101ZIEB0HD1-S | 8-bit LVDS | 1400 | -20 to +70 | None |
| FLD-101HMLG2PC004#01 | LVDS | 700 | -30 to +80 | PCAP |
| FLD-101HMLG2PC001#01 | LVDS | 1200 | -30 to +80 | PCAP |
