Daylight Readable Open Frame Monitors

Daylight Readable Open Frame Monitors

Relec’s newest offering in display solutions are a range of daylight readable open frame monitors. These monitors are an ideal solution for equipment manufacturers or integrators, who are looking for a quick and easy installation of a display or HMI into their equipment. These monitors offer features which make them the ideal solution for outdoor installations or in very rugged environments, features such as:

· IPS technology, for complete viewing angles

· High contrast ratios

· High brightness levels, up to 2000 cd/m2

· Optical Bonding

· PCAP touch panel with rugged thick cover glass, up to 6mm

· Wide operating temperature, up to -30 to +70

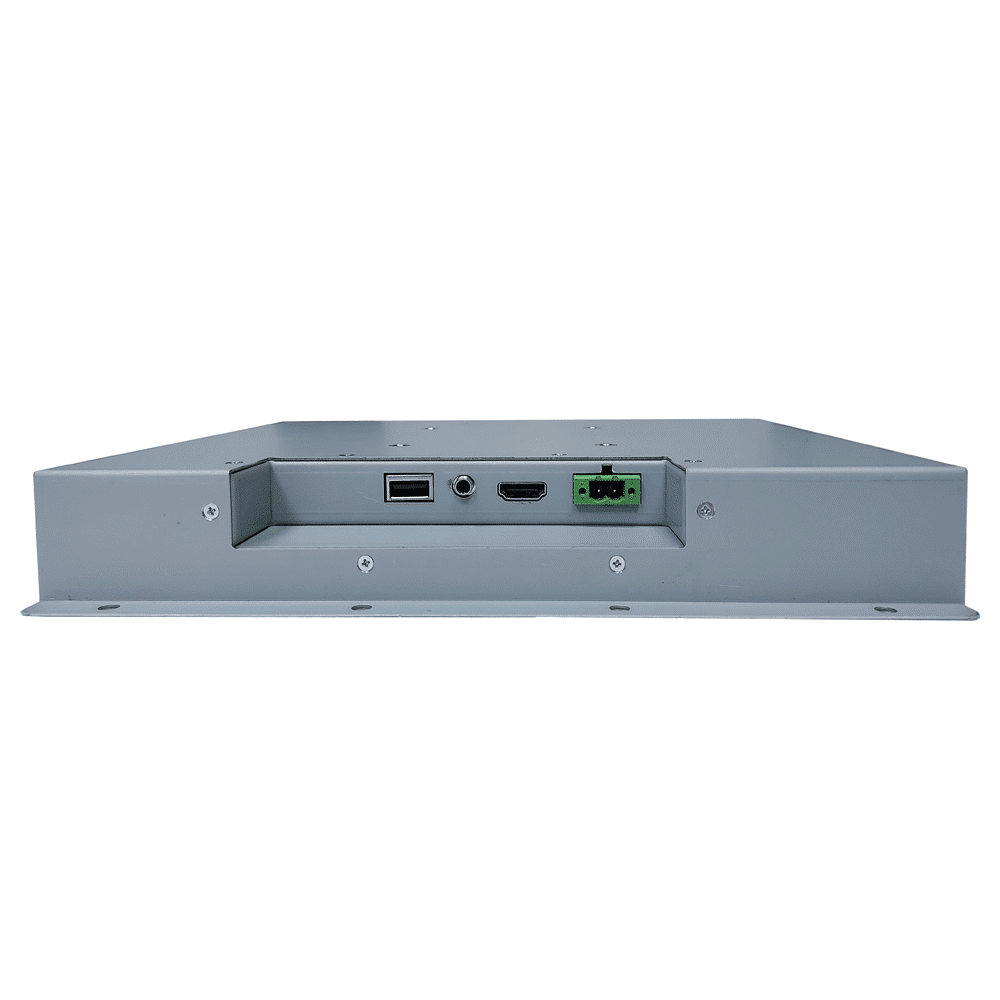

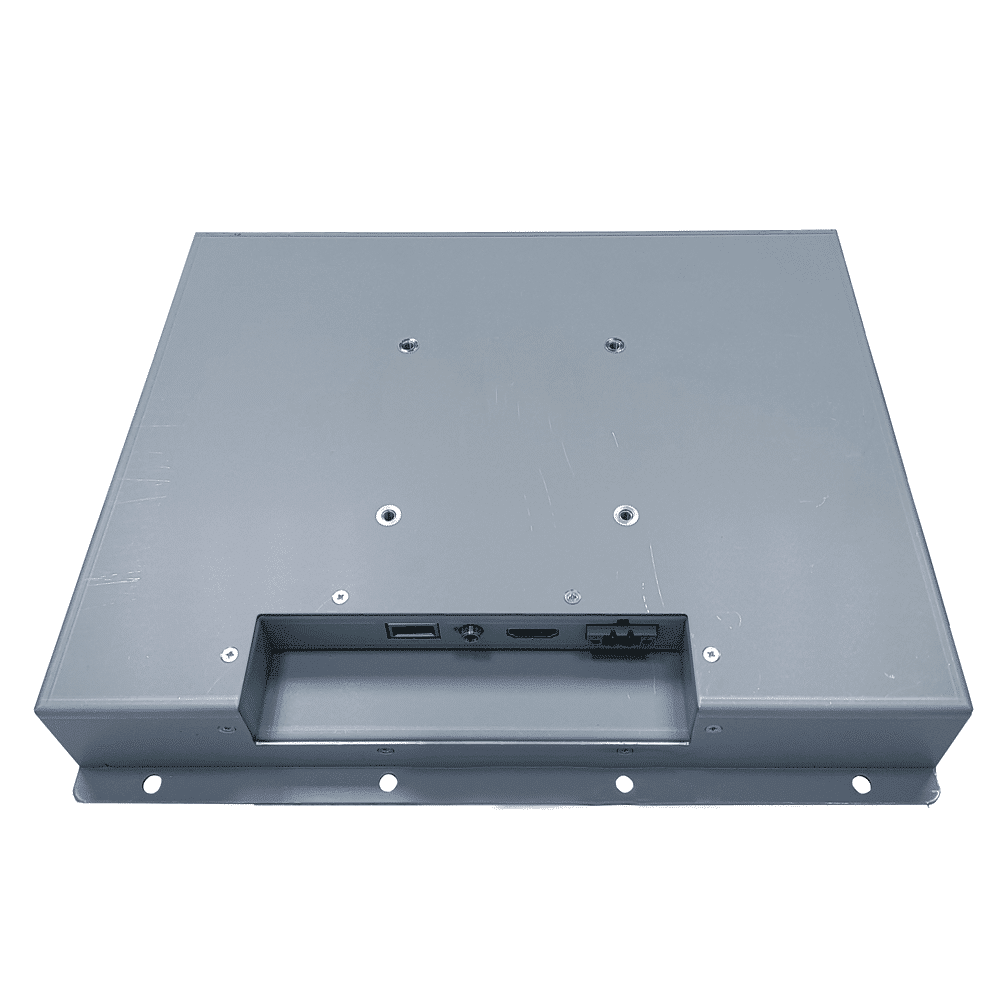

These monitors come in sizes of 7”, 10.4” and 12.1” (4:3 aspect ratio), each incorporating a HDMI input, a USB interface for the touch, an audio line output and automatic brightness dimming. Each also has VESA mounting points, and a flange plate, to suit various mounting methods.

Further modifications and/or enhancements are also available with these monitors, to further improve the performance and to personalise them, such as:

· Custom cover glass printing

· Surface Treatments

· Cable Assemblies

· Addition of films within the optical stack, such as EMC mesh

Design Support

Relec offers a wide selection of touch panels suitable for applications from commercial grade to automotive and military. The display specialist offers touch panels with noise immunity up to 50V/m, suitable for mission-critical applications in medical, automotive and avionic markets. PCAP touch panels are popular in commercial applications; they are durable and offer an easy to use, responsive touch input for retail ordering, information or arcade games.

We consider ourselves experts in display technology. We have worked closely with our key suppliers for over 40 years. We specialise in many industries, including; automotive, industrial, transportation, instrumentation & defence. We have a team of dedicated engineers ready to support you throughout the design process. We also carry stock of all standard modules and accessories for next day delivery.

Daylight Readable Open Frame Monitors
from Digiwise Displays

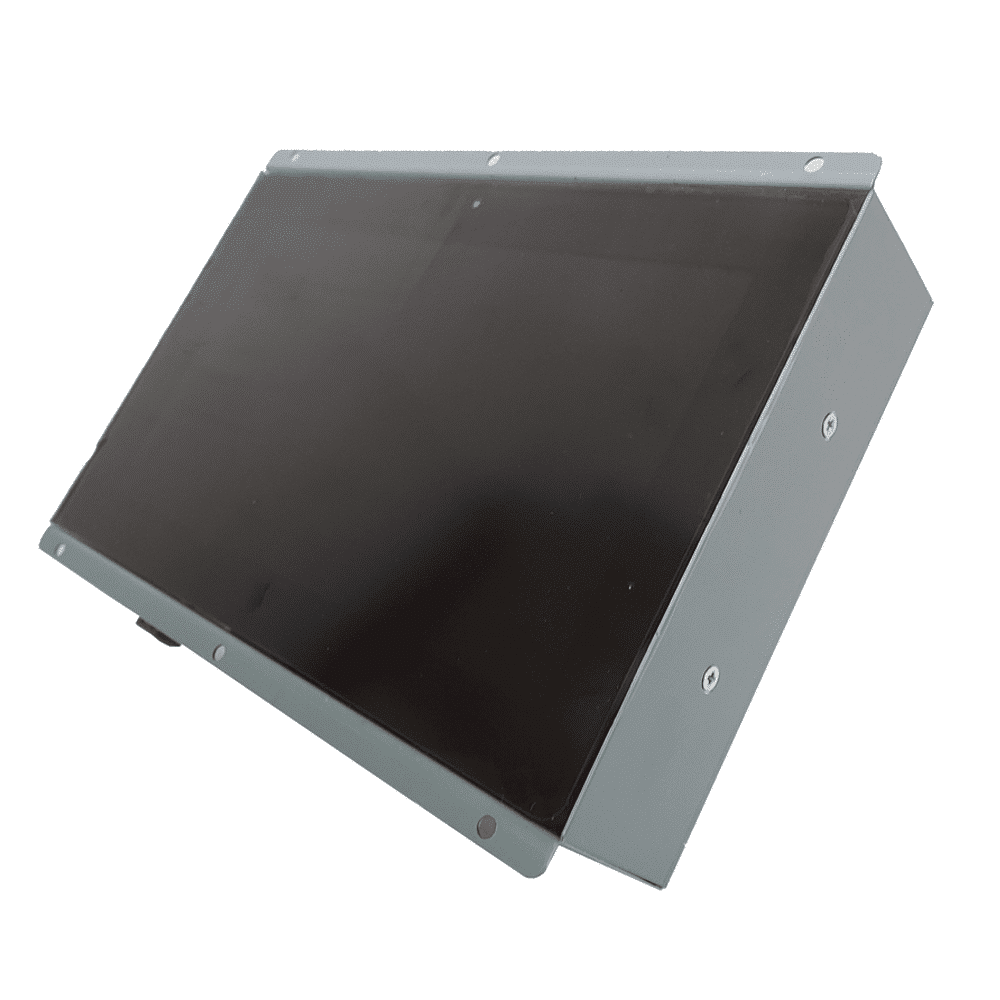

7 Inch Open Frame Monitor

Screen Size: 7 Inch (16:9)
Active Area: 154.21(W) × 85.92(H) mm
Resolution: 1024 (W) RGB x 600 (H) pixels
Interface: HDMI
Mounting: VESA or Rear Mount

---

Click Here for Info

10.4 Inch Open Frame Monitor

Screen Size: 10.4 Inch (16:9)
Active Area: 210.43 (W) x 157.82 (H) mm
Resolution: 1024 (W) RGB x 768 (H) pixels
Interface: HDMI
Mounting: VESA or Rear Mount

---

Click Here for Info

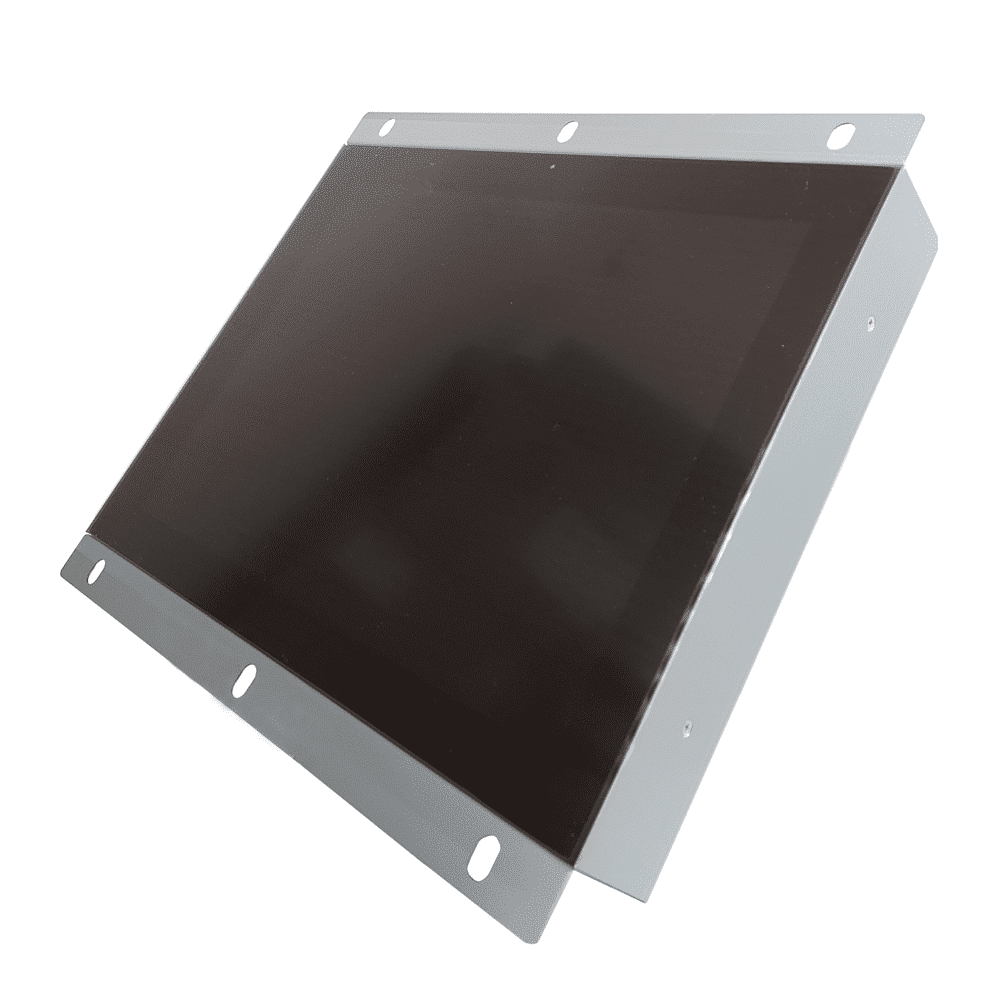

12.1 Inch Open Frame Monitor

Screen Size: 12.1 Inch (4:3)
Active Area: 245.76(W) x 184.32(H) mm
Resolution: 1024 (W) RGB x 768 (H) pixels
Interface: HDMI
Mounting: VESA or Rear Mount

---

Click Here for Info
