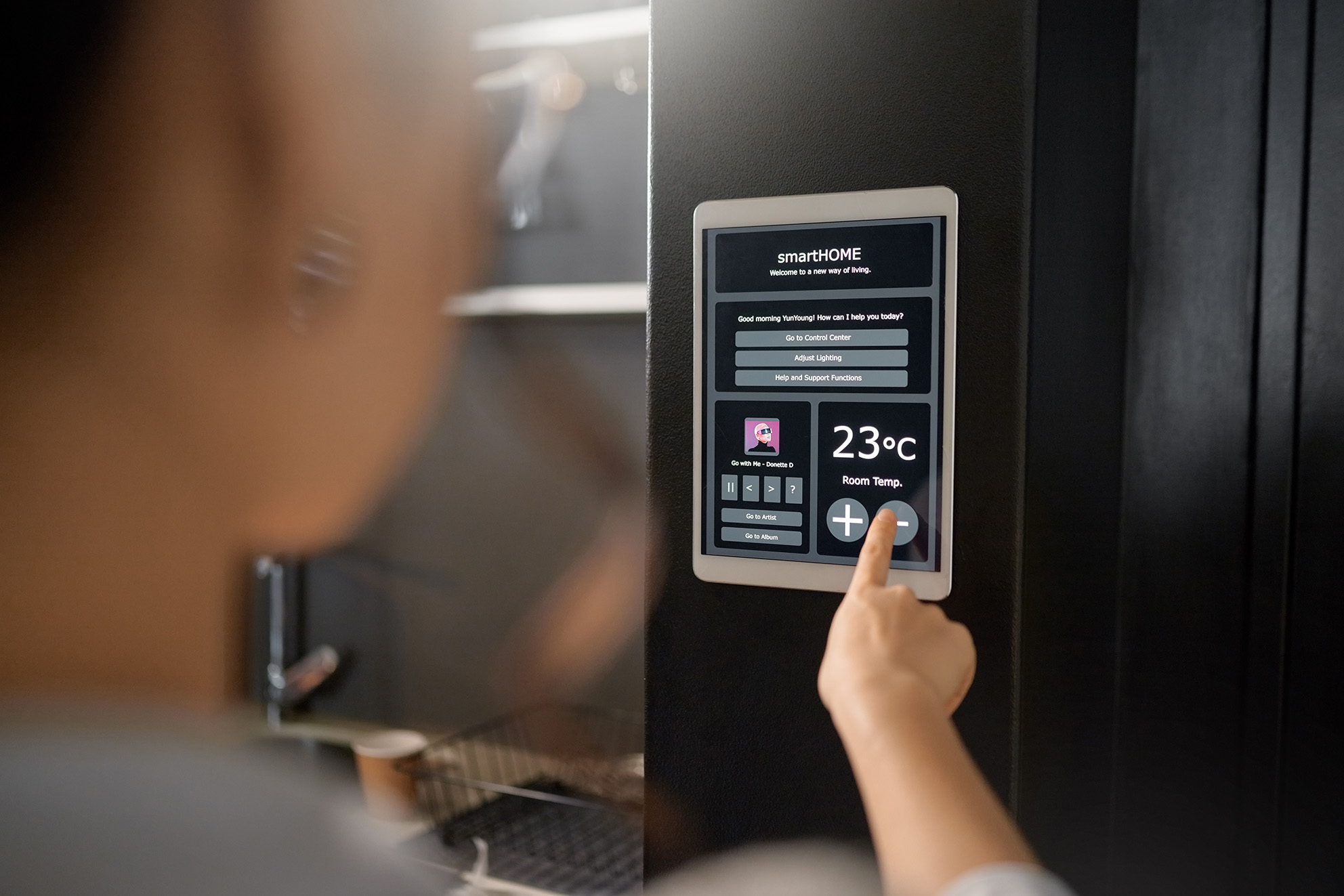

Home automation control – Wide viewing angle IPS panel
“We want a display and touch panel for our home automation control system"
Request
Our customer wanted a wide viewing angle display for use in a control panel for a home automation panel. The display had to have the following features:
- Wide viewing angle
- Portrait mode
- Custom glass for integrated camera
- Custom video interface
-
7” WXGA IPS TFT LCD Display
Screen Size: 7″
Aspect Ratio: 16:10
Active Area: 149.76(W) x 93.6(H) mm
Resolution: 1280 x 800
Interface: 8-bit LVDS & MIPI
Brightness: 400cd/m2
Touch Panel Options: PCAP & Resistive
Operating Temperature -20°C to +70°C
Refine
Our IPS panels are the perfect starting point for this application. They offer a wide viewing angle with no grey inversion. We were able to support the customer with a custom cover glass which allowed integration of their own camera along with custom printing. Our PCAP touch panel solution also allow gave the system the ability to work with a variety of different touch features.
-
7.0 PCAP Touch Panel
Construction: Glass/Film/Film (GFF)
Number of fingers: 10
Cover lens: up to 10mm
Signal to Noise ratio: 32V
Result
Our final solution provided the customer with the following features:
- Wide viewing angles
- Fast delivery of prototypes
- Single / mutli touch features
- Custom glass for sensor and camera integration
- Custom video interface
- Portrait mounting
- Total project support
- Custom firmware support
