9 Inch TFT Screens fill the gap perfectly

9 Inch TFT Screens fill the gap perfectly

Equipment manufacturers looking for midsized wide screen displays are currently limited to either 7” displays, or if the 7” does not provide the level of active area required, moving up to a larger 10” unit with the associated added cost. Relec Electronics are pleased to announce the general availability of 3 new TFT displays in a 9” footprint with Wide screen 16:9 aspect ratios.

HDMI & LVDS Options

Interface options include LVDS and HDMI inputs as well as possibilities to fit PCAP touchscreens with choices of cover glass thickness. Digiwise offer a huge range of additional options which include: optical bonding; enhancement films; anti-bacterial treatments for medical applications; the ability to supply true daylight viewing displays; as well as interface boards. We believe that between Relec, DigiWise, & Futurelabs, we can offer unparalleled products and customer service. Whether it’s a standard display, or if you have specific requirements, call us to discuss your project.

Wide Operating Temperature

We can also supply a wide operating temperature version ( -40°C to + 85°C) from Futurelabs for use in harsh environments such as defence, transportation, and remote industrial applications. All Futurelabs displays are available with Rocktouch Rugged line PCAP touch panels, which offer best in class performance when it comes to noise & water rejection as well as options for glove touch, operation with water, and firmware tuning.

Future Proofing

Lastly we are proud to offer our future proofing service. As the hardware, circuits and backlights are all proprietary to DigiWise & Futurelabs, in the unfortunate event the panel component becomes end of line, we can ensure continued supply through a managed process, keeping the customer informed at all stages. Our dedicated displays brochure gives full details which you can find here. If you would like a printed copy for reference please call us or complete a form and we will be pleased to send you one.

We consider ourselves experts in display technology. We have worked closely with our key suppliers for over 40 years. We specialise in many industries, including; automotive, industrial, transportation, instrumentation & defence. We have a team of dedicated engineers ready to support you throughout the design process. We also carry stock of all standard modules and accessories for next day delivery.

9 Inch TFT Screens
from Digiwise & Futurelabs

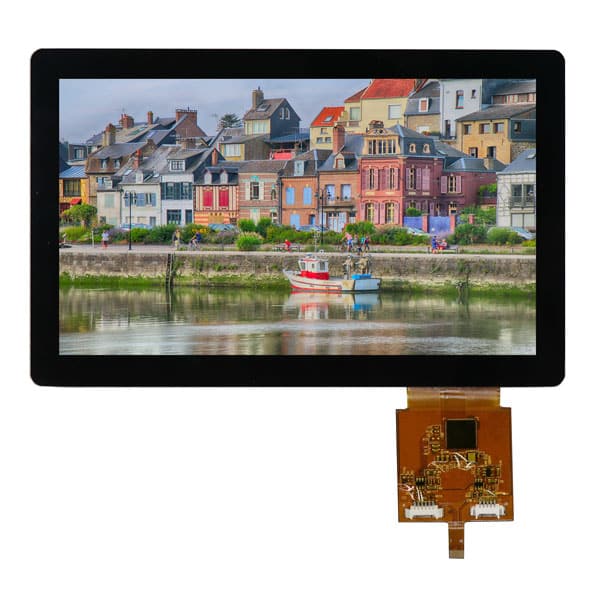

9 Inch IPS TFT Display

Screen Size: 9 Inch (WGSA)
Aspect Ratio: 16:9
Resolution: 1024(W) x 600(H) RGB pixels
Interface: LVDS
Active Area: 196.61(W) x 114.15(H) mm

---

Click Here for Info

9 Inch IPS HDMI Display

Screen Size: 9 Inch (WGSA)
Aspect Ratio: 16:9
Resolution: 1024 (W) x 600(H) RGB pixels
Interface: HDMI
Active Area: 196.61(W) x 114.15(H) mm

---

Click Here for Info

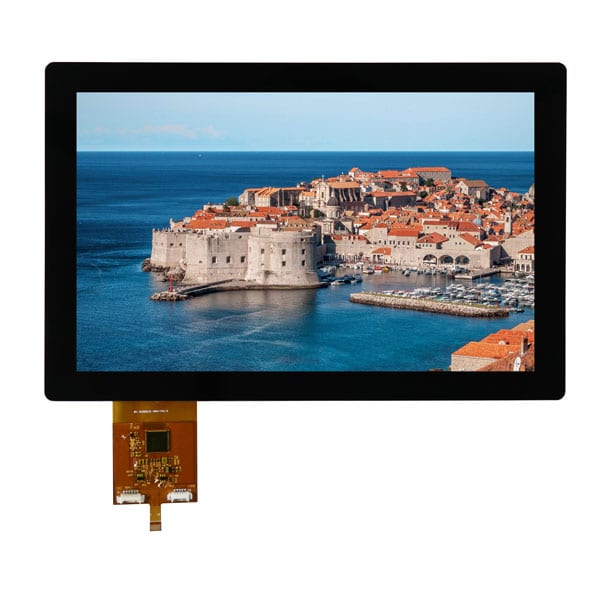

9 Inch IPS Display Wide Temperature

Screen Size: 9 Inch (WVGA)
Aspect Ratio: 16:9
Resolution: 800(W) x 400(H) RGB pixels
Interface: LVDS
Operating Temp: -40°C to + 85°C

---

Click Here for Info
